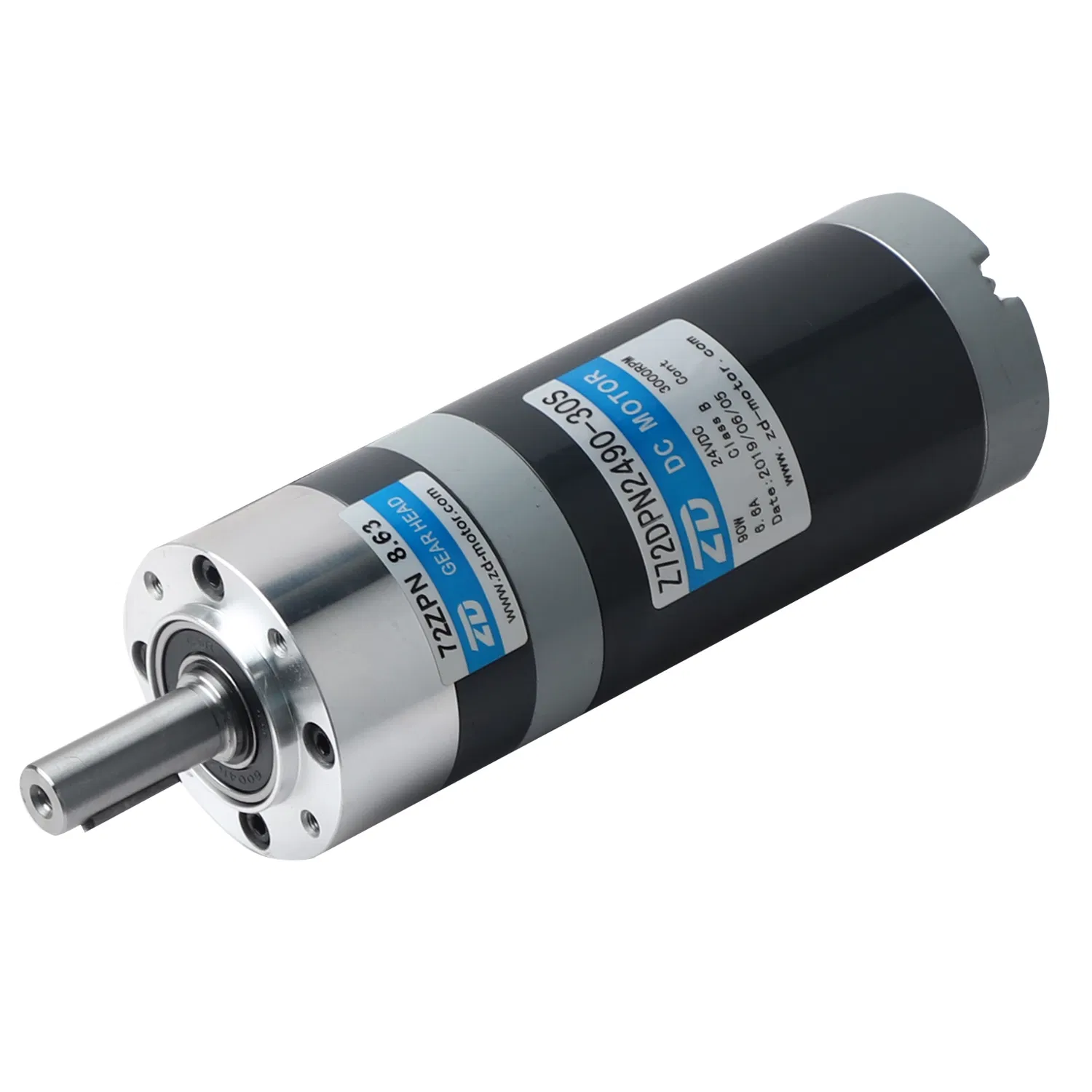

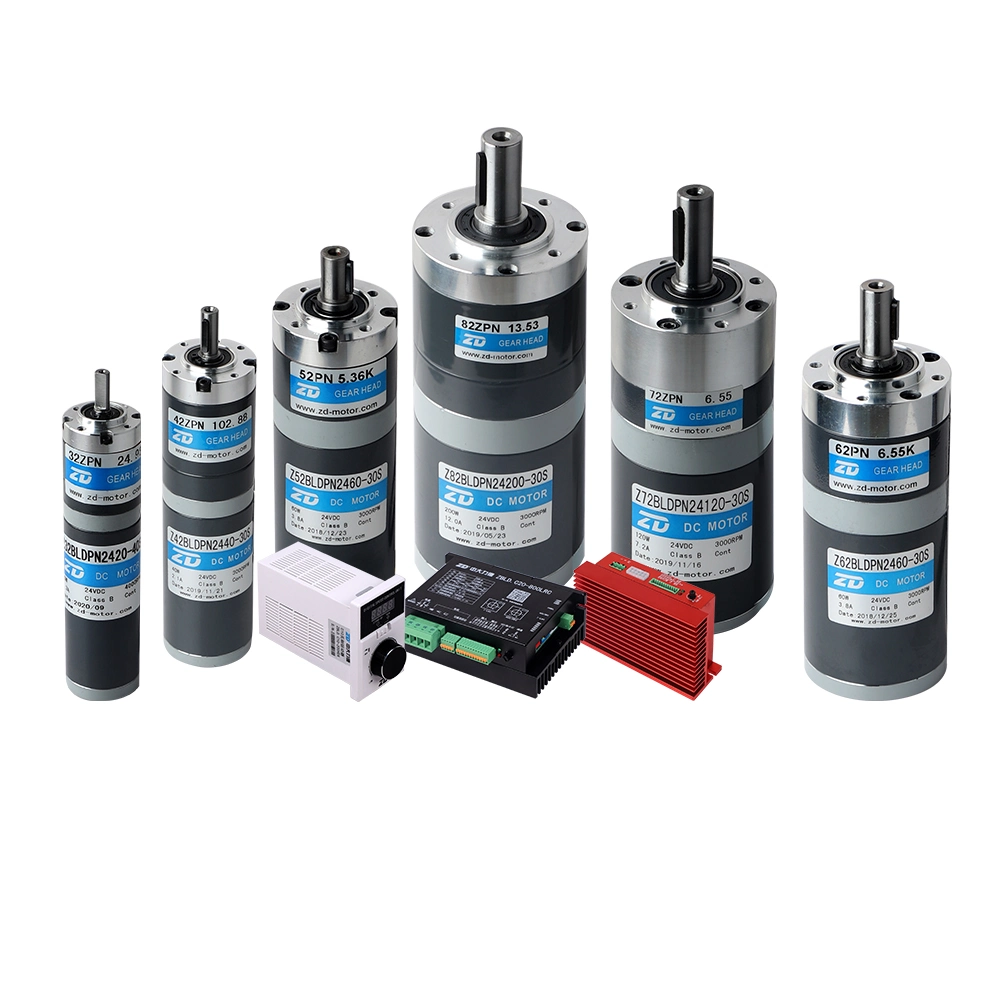

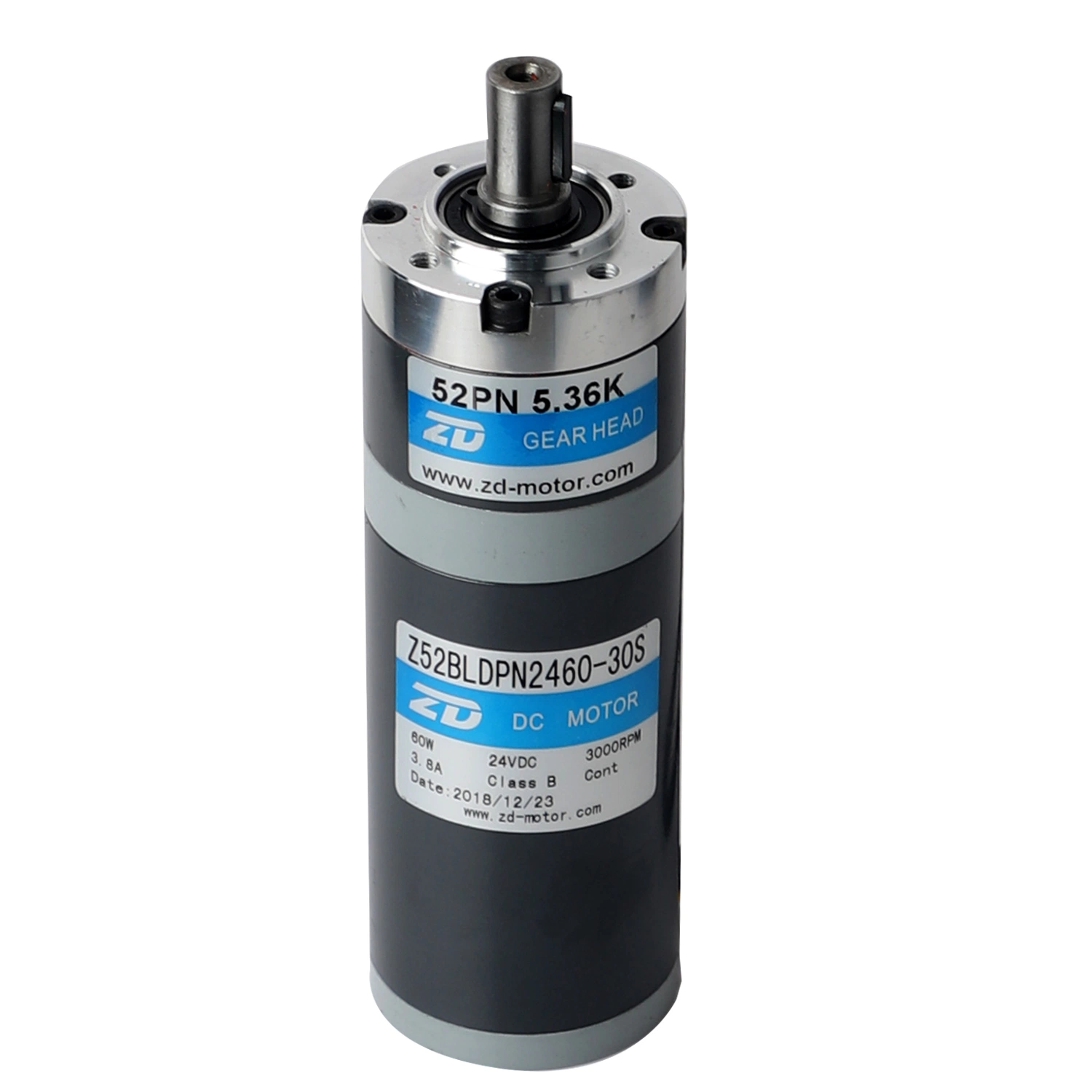

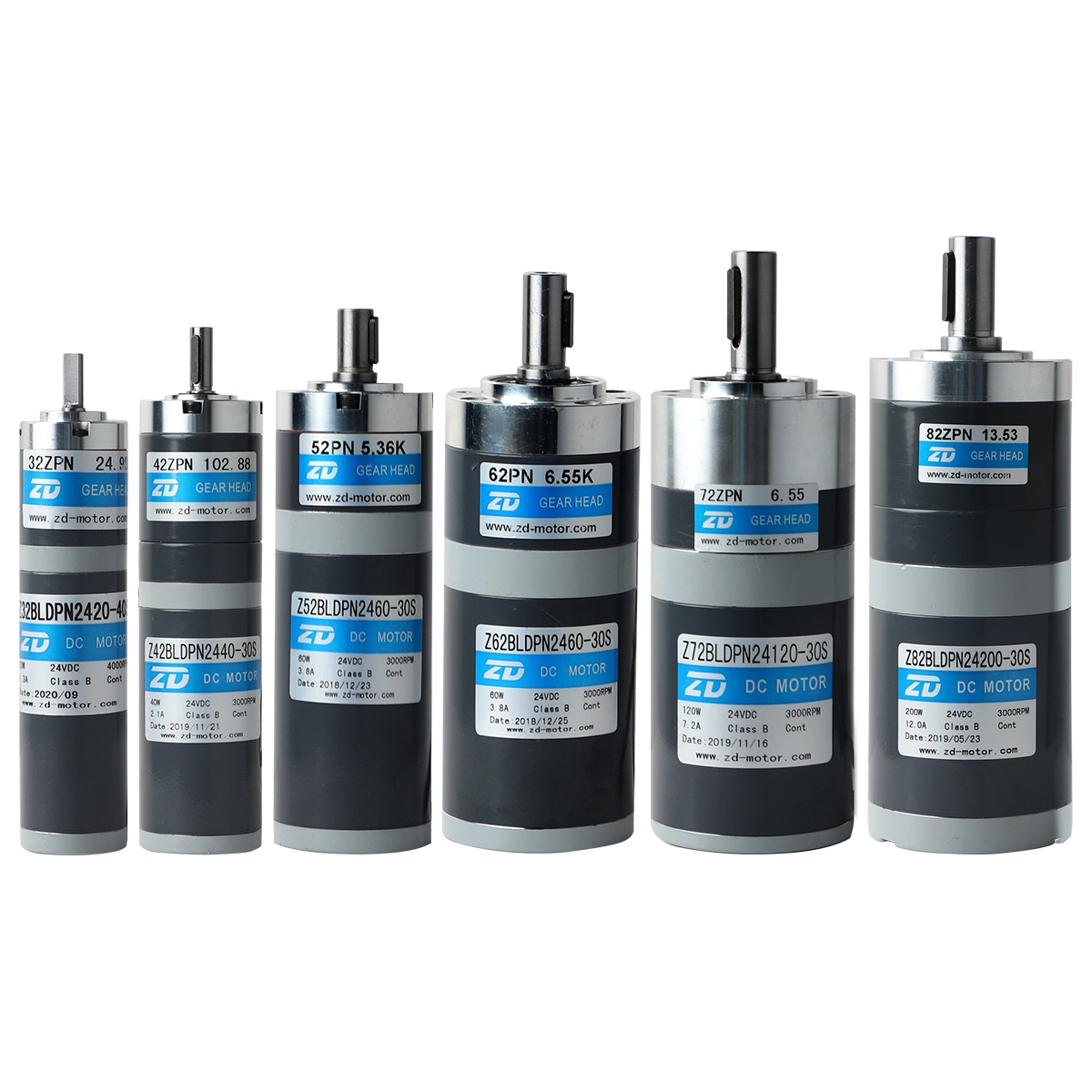

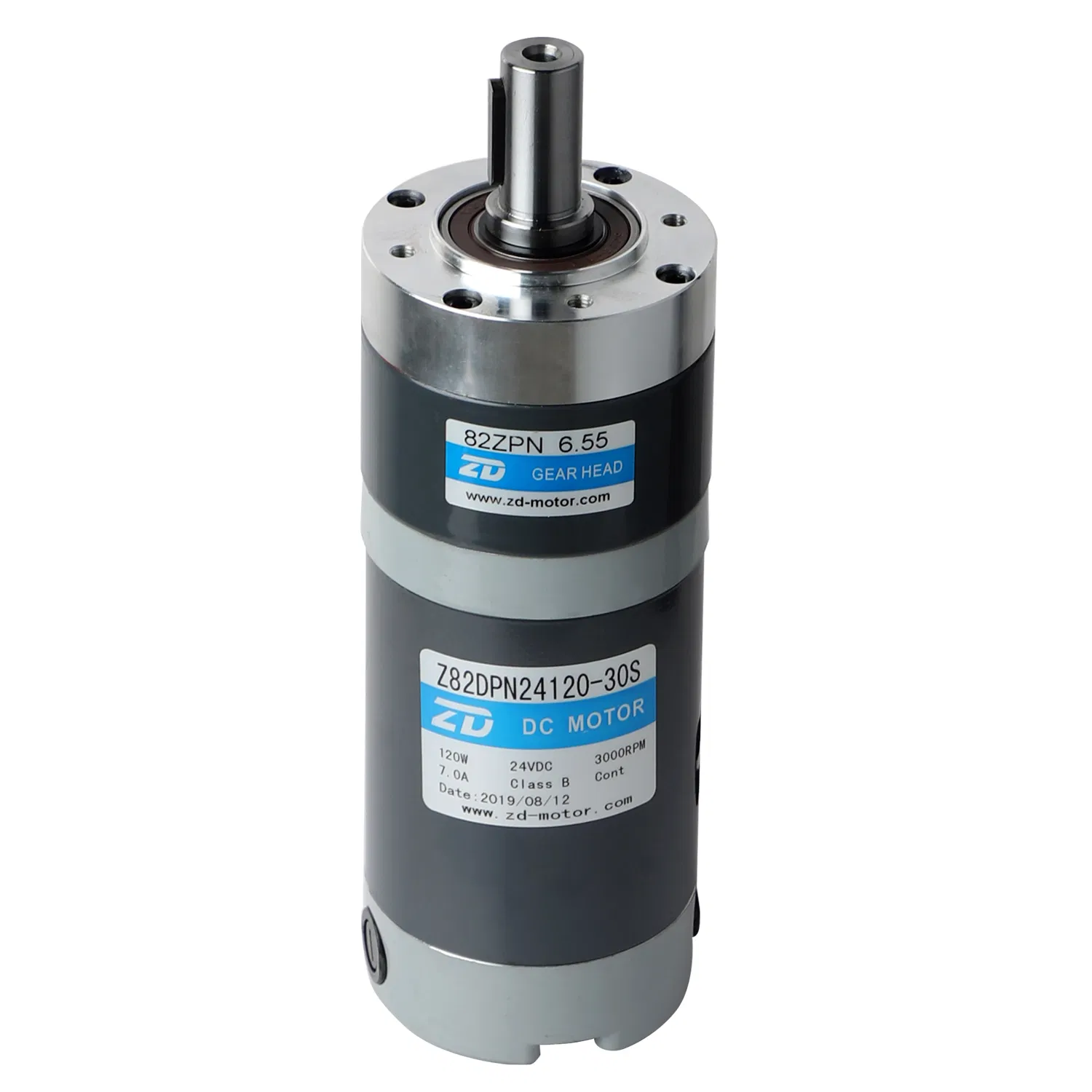

ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
1 / 5
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox
ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox

ZD 32mm 42mm 52mm 62mm 72mm 82mm 12V 24V 48V 10W-300W Round Flange High Torque DC Brushless or Brush DC Planetary Gear Motor With Planetary Gearbox

Customization: Available
Application: Universal, Industrial, Household Appliances, Equipment
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Information
Model NO.
Z32BLDPN/Z42BLDPN
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
2-6
Structure
Brush/Brushless
Certification
ISO9001, CCC, UL
Power Range
10W - 300W
Motor Type
DC Gear Motor
Voltage
12V-48V
Speed
3000rpm
Size
32mm to 82mm
Production Capacity
30000PCS/Month
Product Overview

A wide range of micro motor production lines are available, including DC Motors, AC Motors, Brushless Motors, Planetary Gear Motors, Drum Motors, Planetary Gearboxes, RV Reducers, and Harmonic Gearboxes. Through technical innovation and customization, we provide flexible solutions for various industrial automation situations.

Planetary Gear Motor Selection
⚙️
Model Selection: Professional technical teams assist in choosing the right model and transmission solutions based on your specific parameters.
📊
Drawing Request: Detailed catalogues, CAD, or 3D drawings are available upon request to assist your design process.
🛠️
Customization: Standard products can be modified or fully customized to meet unique application needs.
Technical Parameters

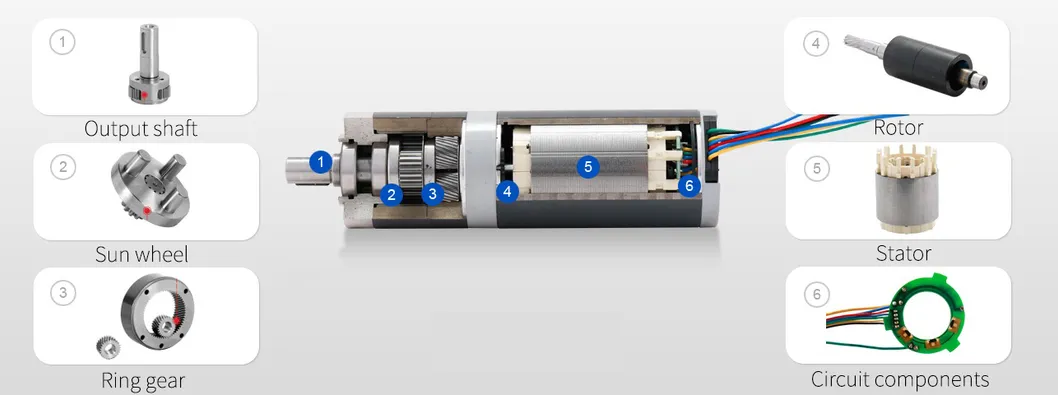

Planetary Gear Motor Specifications
Specification Item Details
MOTOR FRAME SIZE32 mm / 42mm / 52mm / 62mm / 72mm / 82mm / 105mm / 120mm
MOTOR TYPEBrush or Brushless
OUTPUT POWER10W to 300W (Can Be Customized)
OUTPUT SHAFT8mm / 10mm / 12mm / 15mm; Round, D-Cut, or Key-Way
VOLTAGE TYPE12V, 24V, 48V
ACCESSORIESElectric Brake / Encoder Options
GEAR RATIO3.65K - 392.98K
PINION TYPEGN Type / GU Type

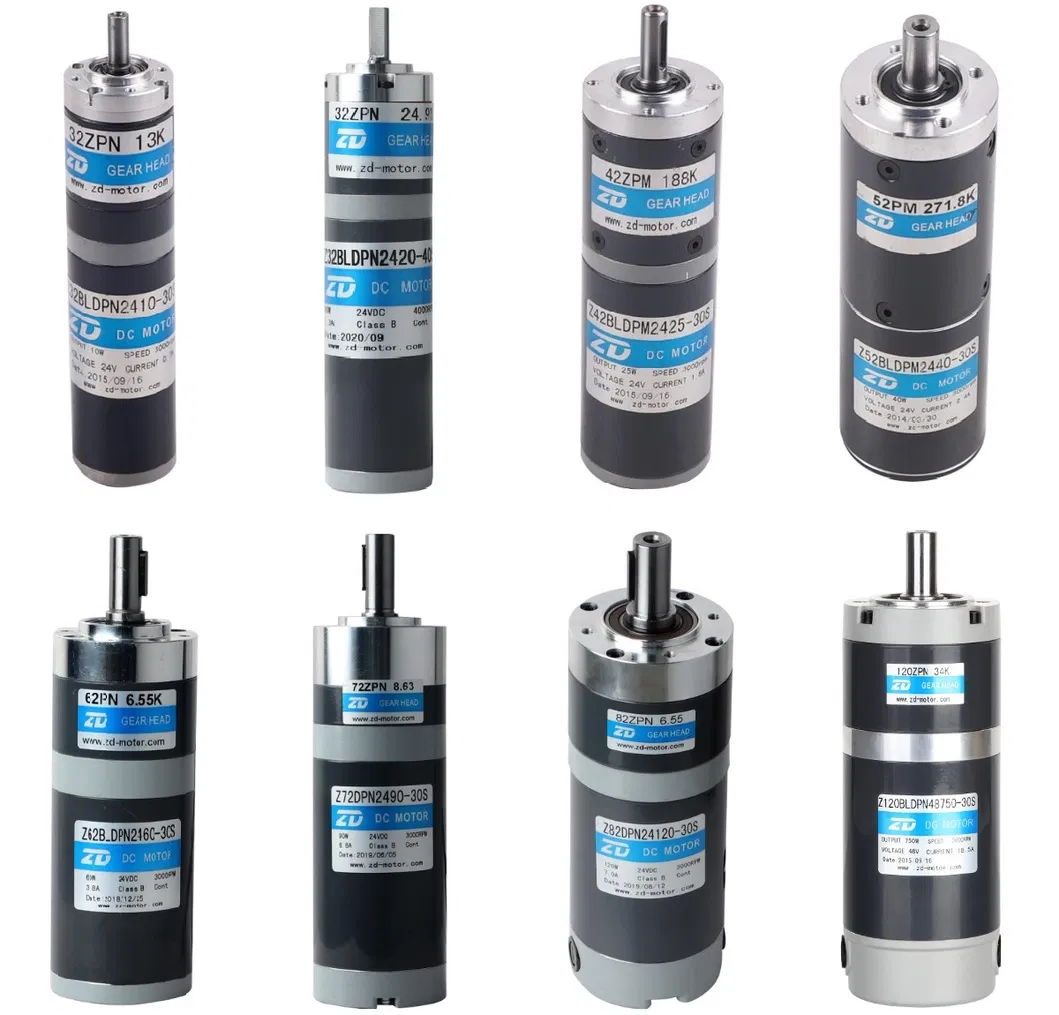

Type Of Planetary Gear Motor
Planetary Gear Motor Types
Production & Quality Control
Production Line 1
Production Line 2
Production Line 3
Frequently Asked Questions
1. What are the advantages of using a planetary gear motor?
Planetary gear motors offer high torque transmission, high efficiency, and a compact design compared to other gear types, making them ideal for precision industrial applications.
2. Can I choose between brush and brushless motors?
Yes, we provide both brush DC and brushless DC (BLDC) planetary gear motors to suit different cost and lifespan requirements.
3. Is it possible to customize the output shaft?
Absolutely. We offer various shaft types including round, D-cut, and key-way shafts, and can customize dimensions to fit your specific needs.
4. What voltages do these motors support?
Our standard planetary gear motors are designed for 12V, 24V, and 48V DC power supplies.
5. Do the motors come with braking options?
Yes, we can equip the motors with electronic brakes or encoders for precise control and safety.
6. What is the maximum power available in this series?
The power ranges from 10W up to 300W, covering a wide variety of driving and control tasks.
