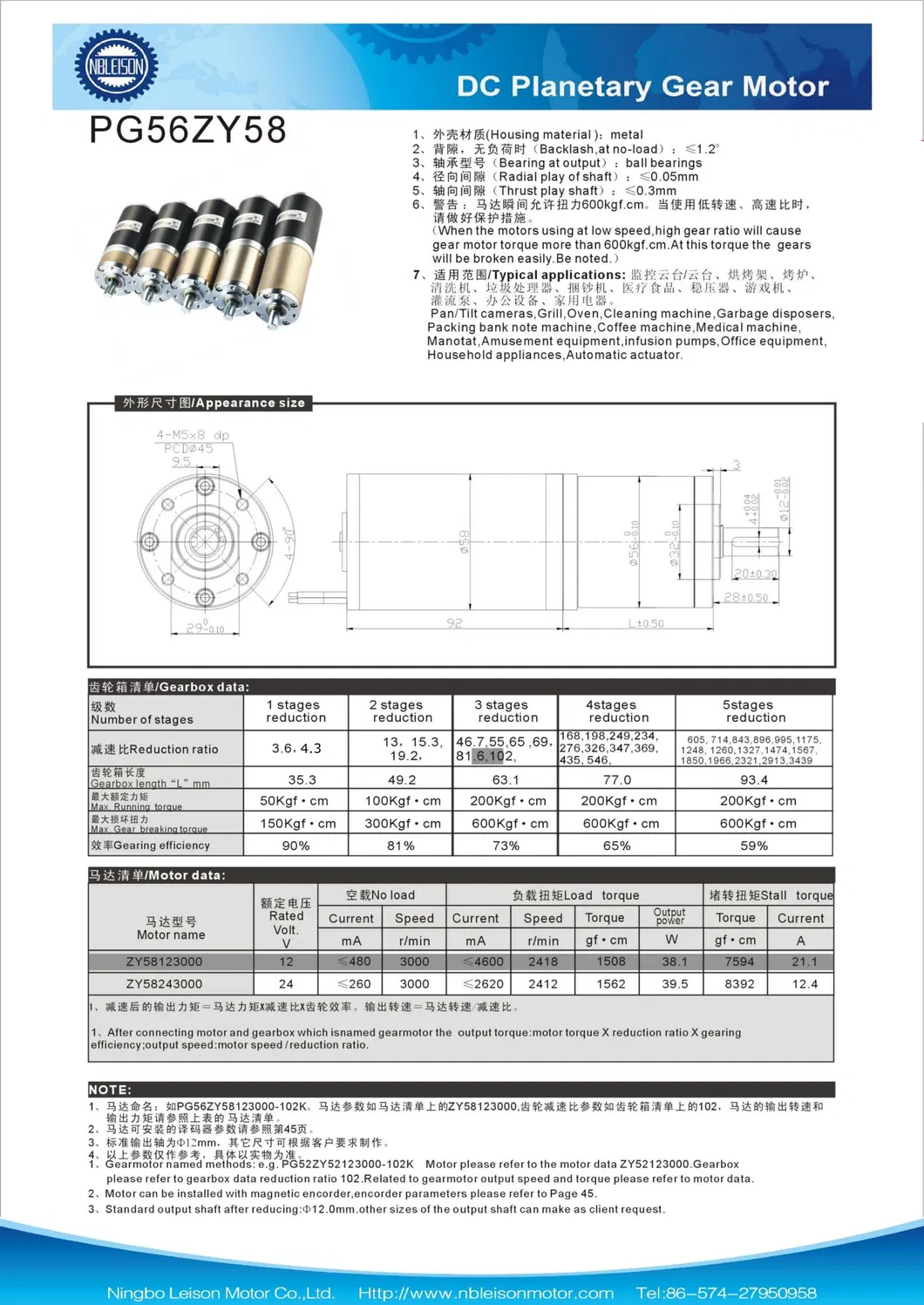

Note: It's just the typical technical data for you reference. The specification such as voltage, speed, torque, shaft can be customized.
How to calculate the motor with gearbox output specs?
1 Output Speed(No-load) = Motor Speed(No-load) / Reduction Ratio
2 Output Torque = Motor Torque * Reduction Ratio * Gearbox Efficiency
Example (PG56ZY58123000-19.2K):
1. Output Speed = 3000 / 19.2 = 156RPM
2. Output Torque = 1508 * 19.2 * 81% = 23452.4g.cm ≈ 23.5kg.cm = 2.397Nm

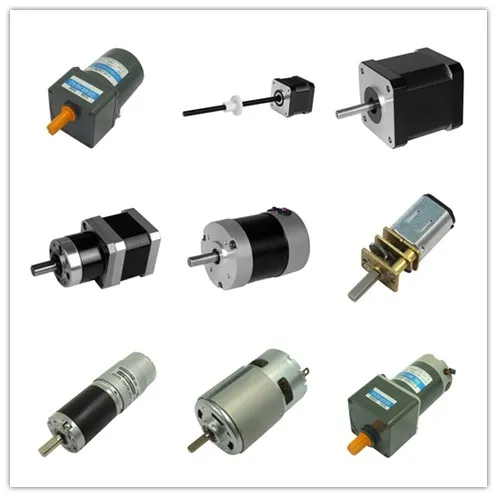

🔹 DC Brush motor: 6-130mm diameter, 0.01-1000W output power
🔹 DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power
🔹 DC Planetary Gear Motor: 10-82mm diameter, 0.1-100W output power
🔹 Brushless DC Motor: 28-110mm, 5-1500W output power
🔹 Stepper Motor: NEMA 08 to NEMA 43, with optional gearbox
🔹 Servo Motor: 42mm to 130mm diameter, 50-4000W
🔹 AC Gear Motor: 49 to 100mm diameter, 6-140W
Frequently Asked Questions
What are your main products?
We currently produce Brushed DC Motors, Brushed DC gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors and AC Motors etc.
How to select a suitable motor?
If you have detailed specs like voltage, speed, torque, motor size, working mode, needed life time and noise level, we can recommend a suitable motor accordingly.
Do you have customized service for standard motors?
Yes, we can customize voltage, speed, torque and shaft size/shape. We can also add wires, connectors, capacitors or EMC.
How do you ensure motor quality?

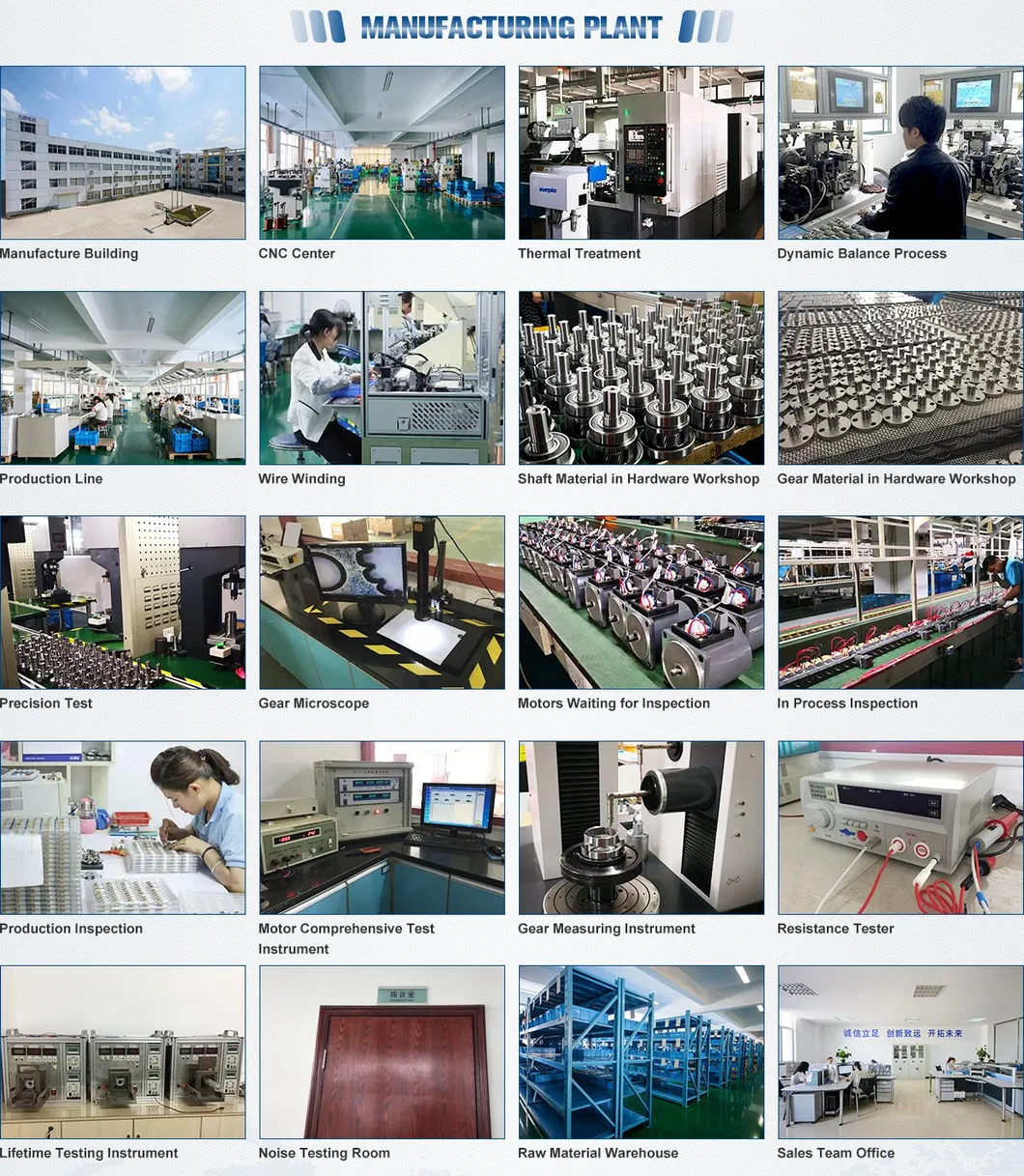

We have strict inspection procedures for incoming materials and tour inspections during production, followed by a final inspection before shipping.
What is your lead time for orders?
Generally, regular standard products require 25-30 days, while customized products may take slightly longer depending on the specific requirements.
What shipping methods do you offer?
For samples and packages under 100kg, we suggest express shipping. For heavy packages, we suggest air or sea shipping based on customer needs.
