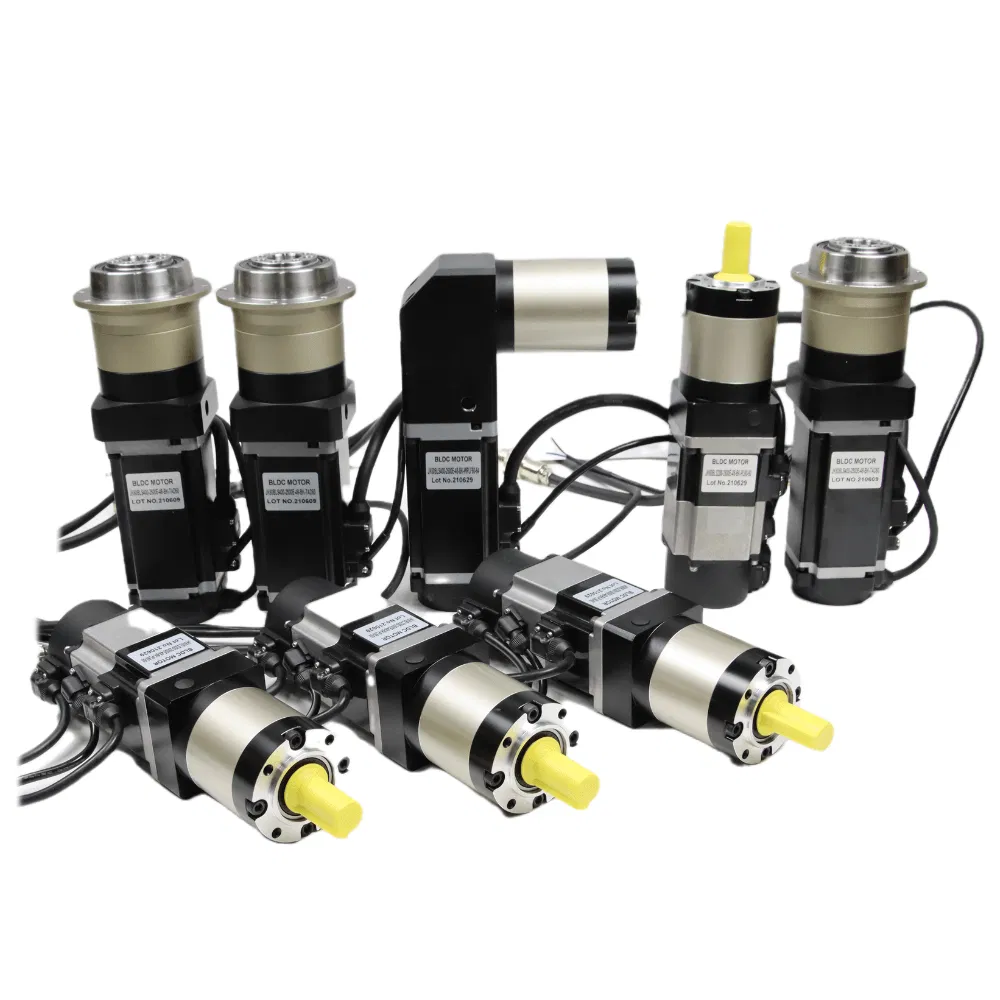

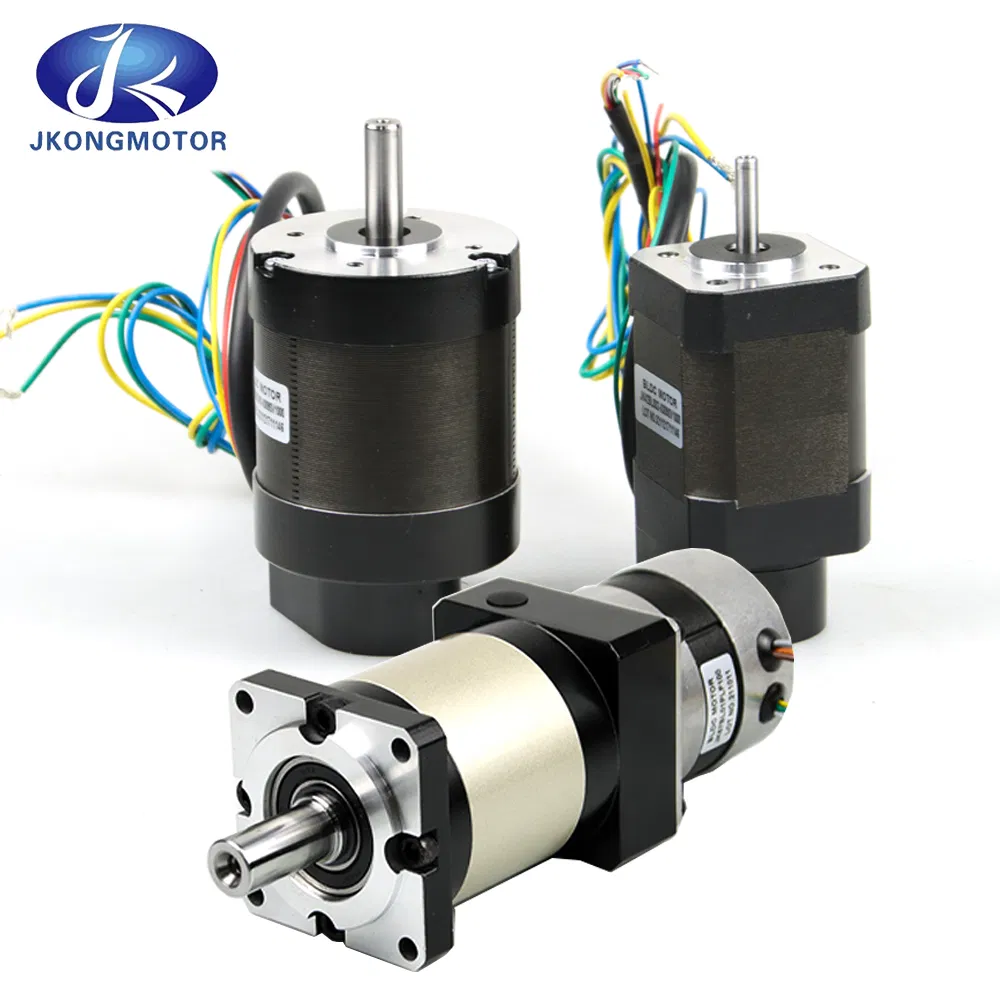

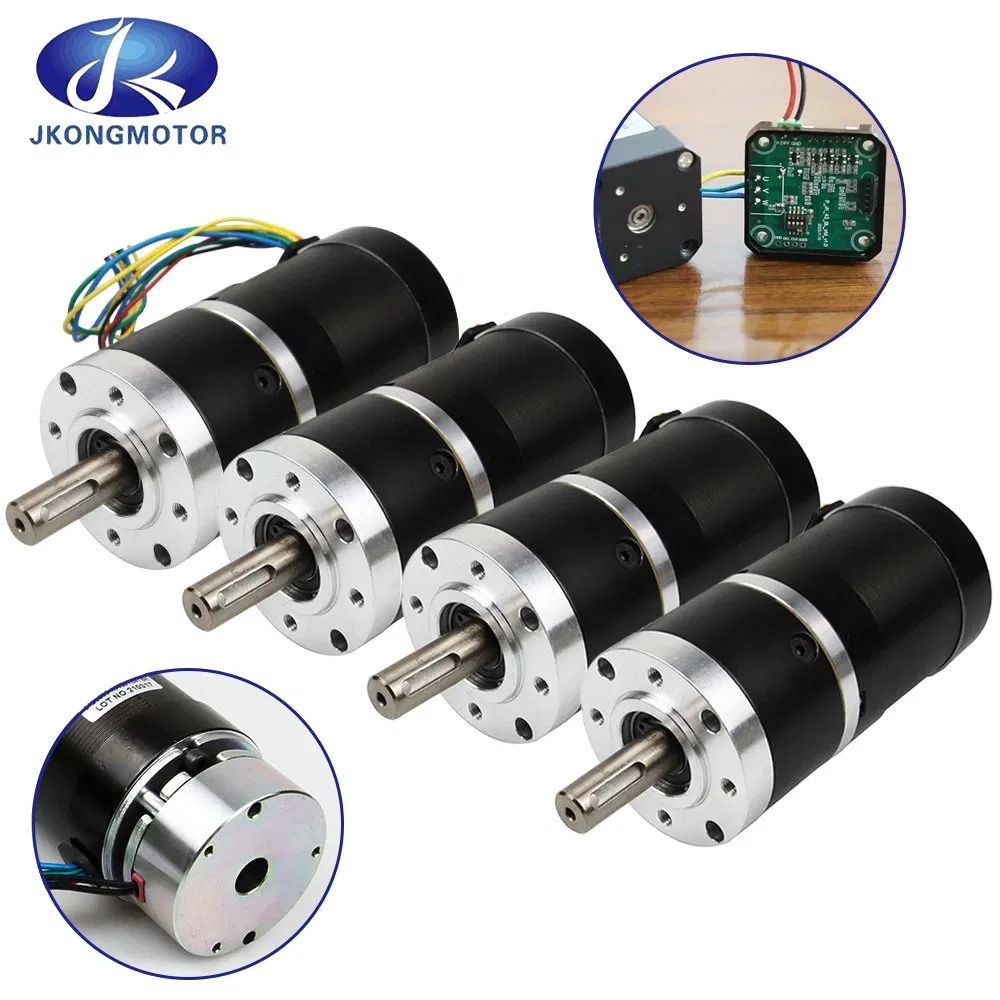

We offer a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
| Specification | Unit | Model | ||||
|---|---|---|---|---|---|---|
| JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 | ||
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.cm2 | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25~+70ºC | |||||
| Operating Temperature | -15~+50ºC | |||||
| Working Humidity | 85% RH or below (no condensation) | |||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | |||||
| Altitude | 1000 meters or less | |||||
| 56JXE300K | |
|---|---|
| Ring material | Metal |
| Bearing at output | Ball bearings |
| Max. Radial (12mm from flange) | 300N |
| Max. shaft axial load | 200N |
| Radial play of shaft (near to flange) | ≤0.08mm |
| Axial play of shaft | ≤0.4mm |
| Backlash at no-load | ≤2.5° |
| Shaft press fit force, max | 300N |
| Motor Shaft Pinion Specifications | |||
|---|---|---|---|
| Module | 1 | ||
| No. of teeth | 12 | 15 | 9 |
| Pressure angle | 20° | ||
| Hole diameter | Φ6H7 | ||
| Reduction ratio | 1/4.25 1/15 1/18 1/23 1/52 1/61 1/72 1/96 1/121 1/220 1/260 1/307 | 1/3.6 1/13 1/43 1/154 1/187 | 1/5.33 1/28 |
| Reduction ratio | Exact reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency | L (mm) | Weight (g) |
|---|---|---|---|---|---|---|
| 1/3.6 1/4.25 1/5.33 | 1/3.6 1/4.25 1/5.33 | 3 N.m Max | 9 N.m | 90% | 37.8±0.5 | 489 |
| 1/13 1/15 1/18 1/23 1/28 | 1/12.96 1/15.30 1/18.06 1/22.67 1/28.44 | 12 N.m Max | 36 N.m | 81% | 49.5±0.5 | 681 |
| 1/43 1/52 1/61 1/72 1/96 1/121 | 1/42.69 1/51.84 1/61.20 1/72.25 1/96.33 1/120.89 | 24 N.m Max | 72 N.m | 73% | 60.8±0.5 | 871 |
| 1/154 1/187 1/220 1/260 1/307 | 1/153.69 1/186.62 1/220.32 1/260.10 1/307.06 | 30 N.m Max | 90 N.m | 66% | 71.9±0.5 | 1066 |
| Input & output same rotation direction; Motor Max. input speed: <6000rpm; Operating temperature range: -15ºC ~ +80ºC | ||||||

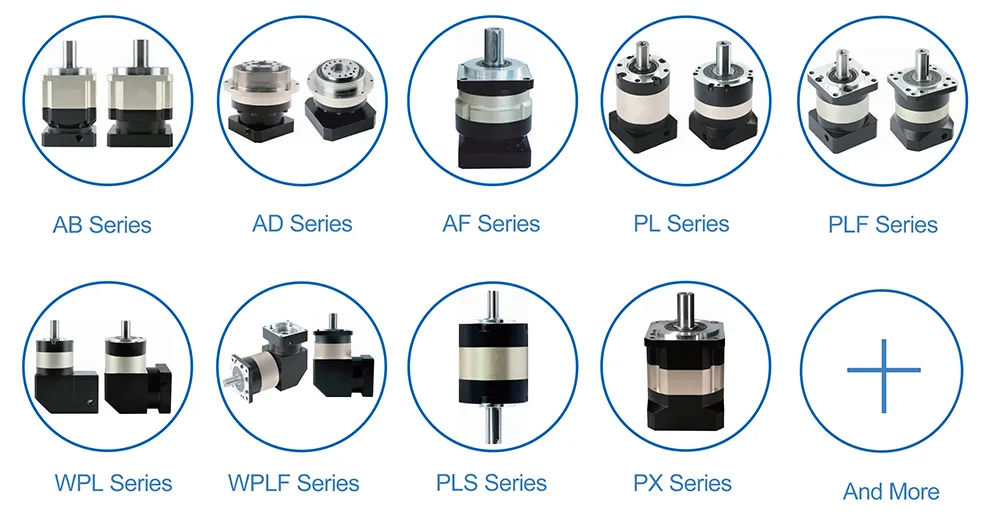

We support many different Gearbox customizations, such as Planetary Gearbox, High Precision Planetary Gearbox, Worm gearbox, Eccentric Gearbox and so on. If you have any customized requirements, contact us immediately!
| Specification | Unit | Model | ||||
|---|---|---|---|---|---|---|
| JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 | |||
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 8 | ||||
| Rated Voltage | VDC | 24 | - | - | - | |
| Rated Speed | Rpm | 4000 | - | - | - | |
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 | |
| Peak Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 | |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 | |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 | |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 | |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 | |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 | |
| Rotor Inertia | g.cm2 | 24 | 48 | 72 | 96 | |
| Body Length | mm | - | ||||
| Weight | Kg | - | ||||
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25~+70ºC | |||||
| Operating Temperature | -15~+50ºC | |||||
| Working Humidity | 85% RH or below (no condensation) | |||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | |||||
| Altitude | 1000 meters or less | |||||
| Specification | Unit | Model | |||
|---|---|---|---|---|---|
| JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 | ||
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 48 | |||
| Rated Speed | Rpm | 3000 | |||
| Rated Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
| Rated Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
| Rated Power | W | 94 | 188 | 283 | 377 |
| Peak Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
| Peak Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
| Back E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
| Torque Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
| Rotor Inertia | kg.cm2 | 0.24 | 0.48 | 0.72 | 0.96 |
| Body Length | mm | 78 | 99 | 120 | 141 |
| Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25~+70ºC | ||||
| Operating Temperature | -15~+50ºC | ||||
| Working Humidity | 85% RH or below (no condensation) | ||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
| Altitude | 1000 meters or less | ||||
| Specification | Unit | Model | |||
|---|---|---|---|---|---|
| JK80BLS01 | JK80BLS02 | JK80BLS03 | JK80BLS04 | ||
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 4 | |||
| Rated Voltage | VDC | 48 | |||
| Rated Speed | Rpm | 3000 | |||
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 |
| Rated Current | Amps | 3 | 5.5 | 8 | 10.5 |
| Rated Power | W | 110 | 220 | 330 | 440 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 |
| Peak Current | Amps | 9 | 16.5 | 24 | 31.5 |
| Back E.M.F | V/Krpm | 13.5 | 13.3 | 13.1 | 13 |
| Torque Constant | N.m/A | 0.13 | 0.127 | 0.126 | 0.124 |
| Rotor Inertia | g.cm2 | 210 | 420 | 630 | 840 |
| Body Length | mm | 78 | 98 | 118 | 138 |
| Weight | Kg | 1.4 | 2 | 2.6 | 3.2 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25~+70ºC | ||||
| Operating Temperature | -15~+50ºC | ||||
| Working Humidity | 85% RH or below (no condensation) | ||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
| Altitude | 1000 meters or less | ||||
| Specification | Unit | Model | ||||
|---|---|---|---|---|---|---|
| JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 | ||
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 8 | ||||
| Rated Voltage | VDC | 48 | ||||
| Rated Speed | Rpm | 3000 | ||||
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
| Rated Power | W | 110 | 220 | 330 | 440 | 660 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
| Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
| Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
| Rotor Inertia | g.cm2 | 400 | 800 | 1200 | 1600 | 2400 |
| Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
| Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25~+70ºC | |||||
| Operating Temperature | -15~+50ºC | |||||
| Working Humidity | 85% RH or below (no condensation) | |||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | |||||
| Altitude | 1000 meters or less | |||||
| Specification | Unit | Model | |||
|---|---|---|---|---|---|
| JK110BLS050 | JK110BLS75 | JK110BLS100 | JK110BLS125 | ||
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 310 | |||
| Rated Speed | Rpm | 3400 | |||
| Rated Torque | N.m | 2.38 | 3.3 | 5 | 6.6 |
| Rated Current | Amps | 0.5 | 0.6 | 0.8 | 1 |
| Rated Power | KW | 0.75 | 1.03 | 1.57 | 2.07 |
| Back E.M.F | V/Krpm | 91.1 | 91.1 | 91.1 | 88.6 |
| Torque Constant | N.m/A | 0.87 | 0.87 | 0.87 | 0.845 |
| Body Length | mm | 130 | 155 | 180 | 205 |
| Sensor | Honeywell | ||||
| Insulation Class | H | ||||
We are a highly professional enterprise located in China. Our products are utilized across a multitude of industries, supporting vital machinery such as 3D printers, CNC systems, medical apparatus, textile printing machinery, and automated systems globally.
We warmly welcome both OEM and ODM collaborations, striving to form long-term strategic relationships with our global partners. Guided by our values of integrity, quality, and sound business reputation, we continue to secure the trust and support of custom design applications. This cooperative support from global and domestic networks lays down a robust foundation for our sustainable development.
We are an advanced manufacturing enterprise starting from 2011, supplying motors globally. Our primary markets span the Domestic Market (26.00%), Western Europe (20.00%), North America (20.00%), Northern Europe (10.00%), Eastern Europe (7.00%), and other areas across Asia and Africa.

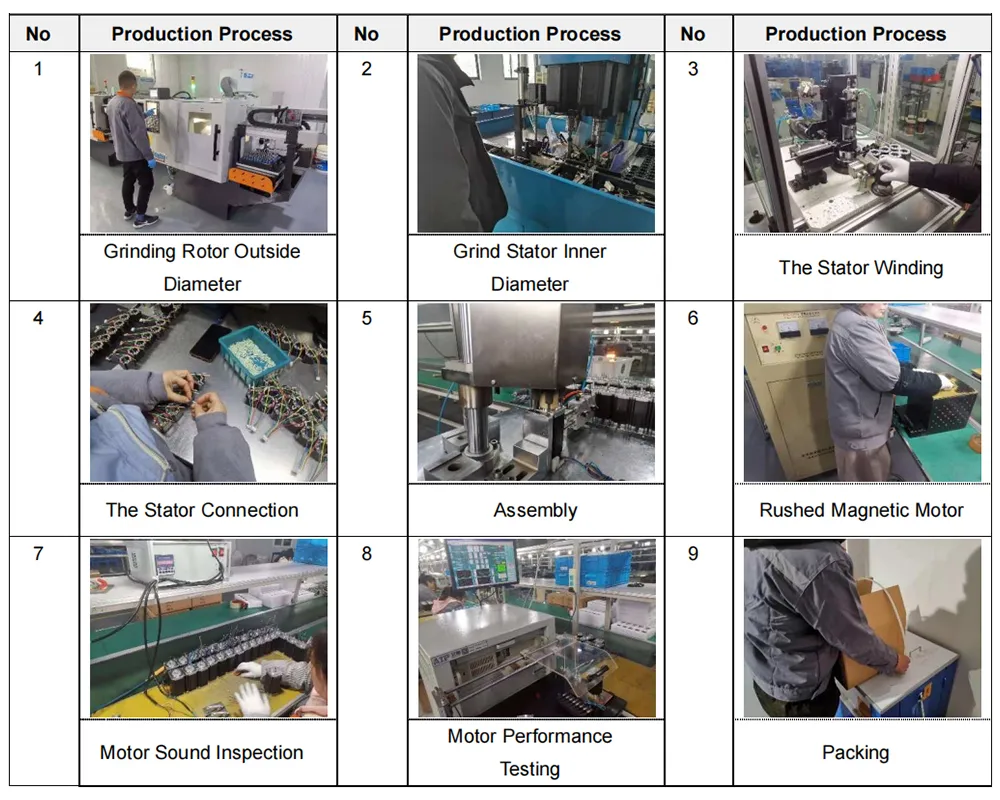

We secure consistent, premium quality by always providing a strict pre-production sample evaluation before launching any mass production, followed by a final comprehensive quality control inspection before packaging and shipment.

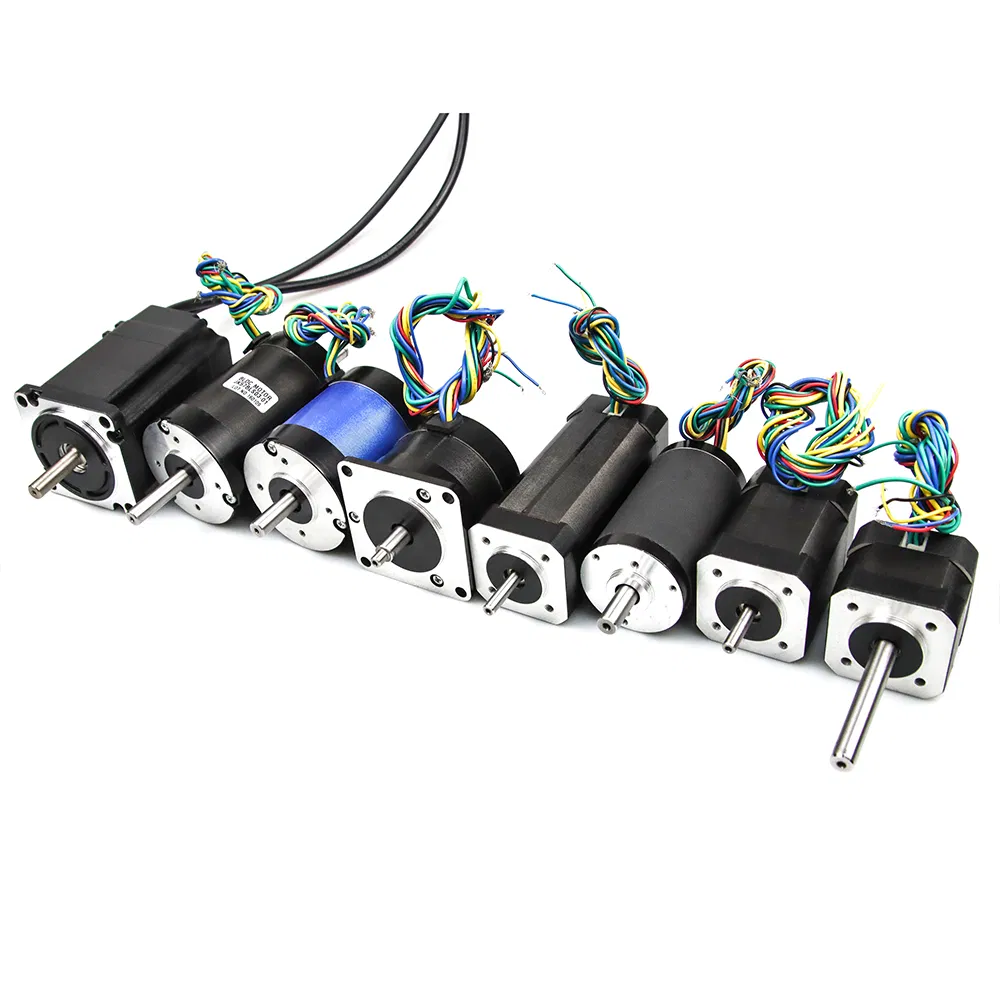

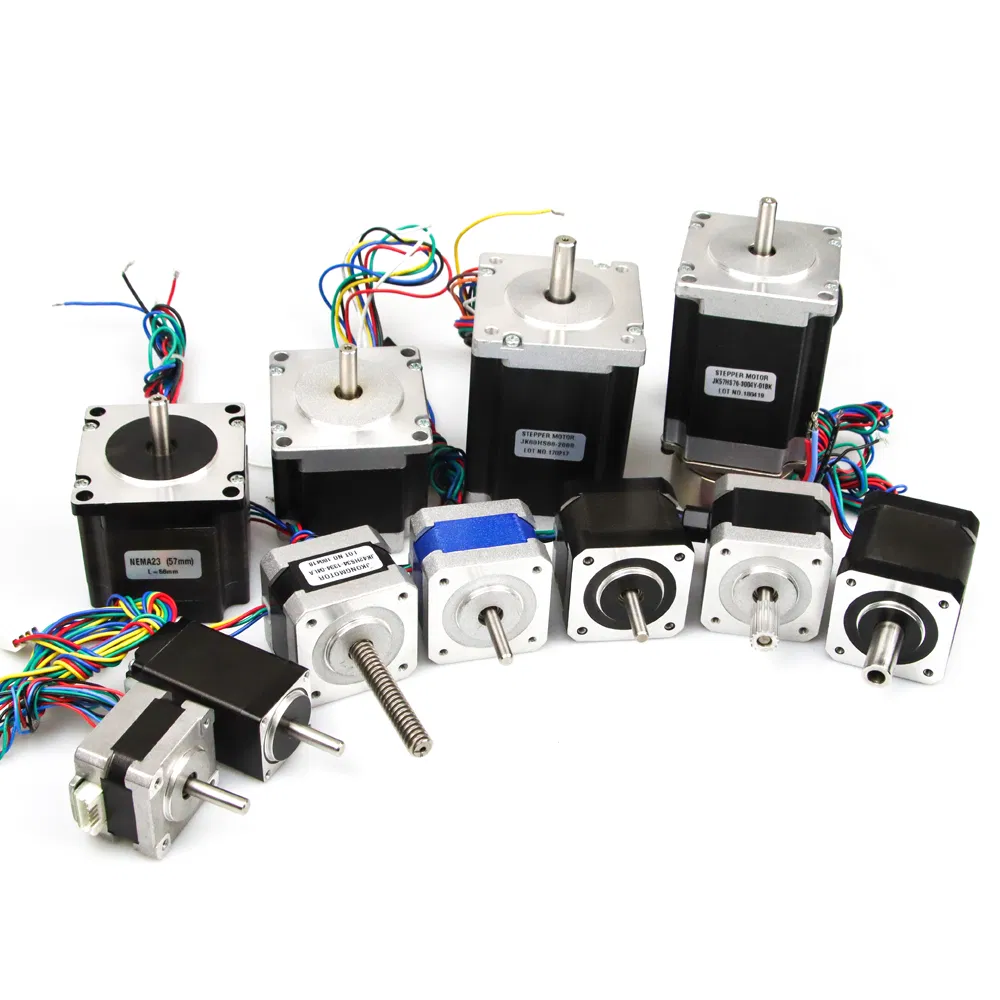

We manufacture a versatile range of components, including Brushless DC Motors, Stepper Motors, Planetary Gearboxes, Planetary Gear Motors, DC Servo Motors, and customized integrated drive systems.
We offer custom professional one-to-one engineering services to align with your design blueprints. Our manufacturing operates under international quality management standards like ISO9001, backed by CE, RoHS, and Reach compliance to meet global standards.
We accept flexible delivery terms such as FOB, CFR, CIF, EXW, DDP, and DDU, alongside major currencies like USD, EUR, CAD, and GBP. Payment methods supported include T/T, L/C, PayPal, Western Union, and Credit Cards.

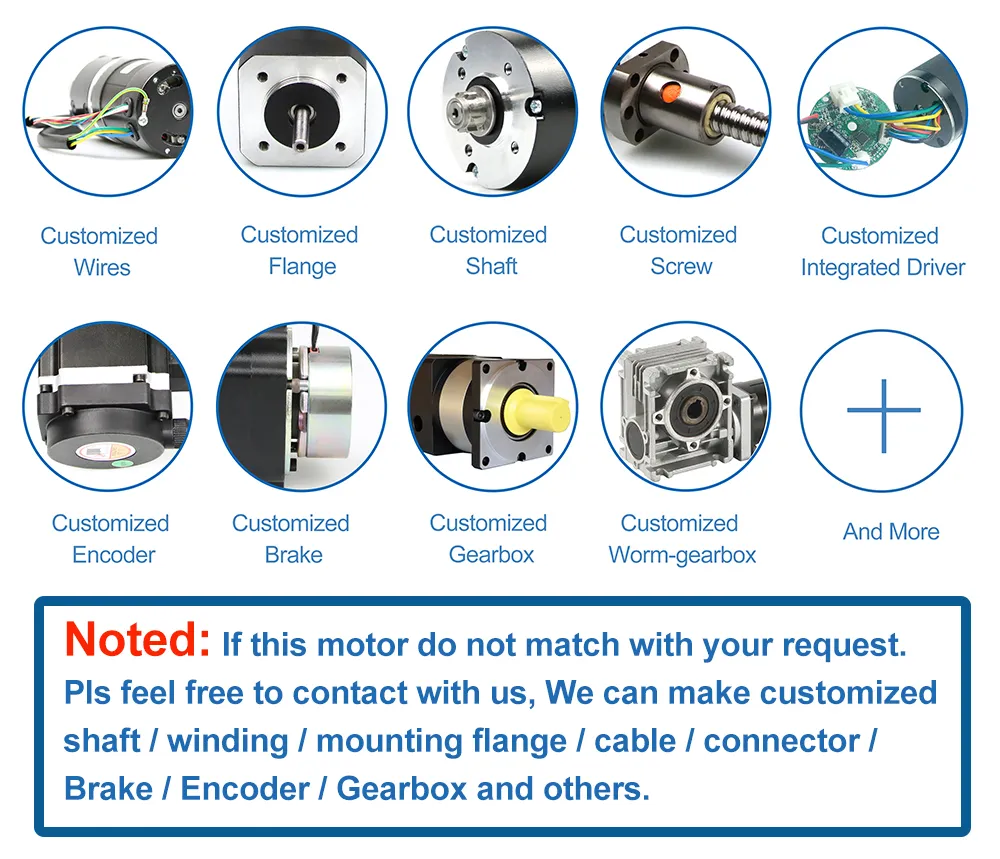

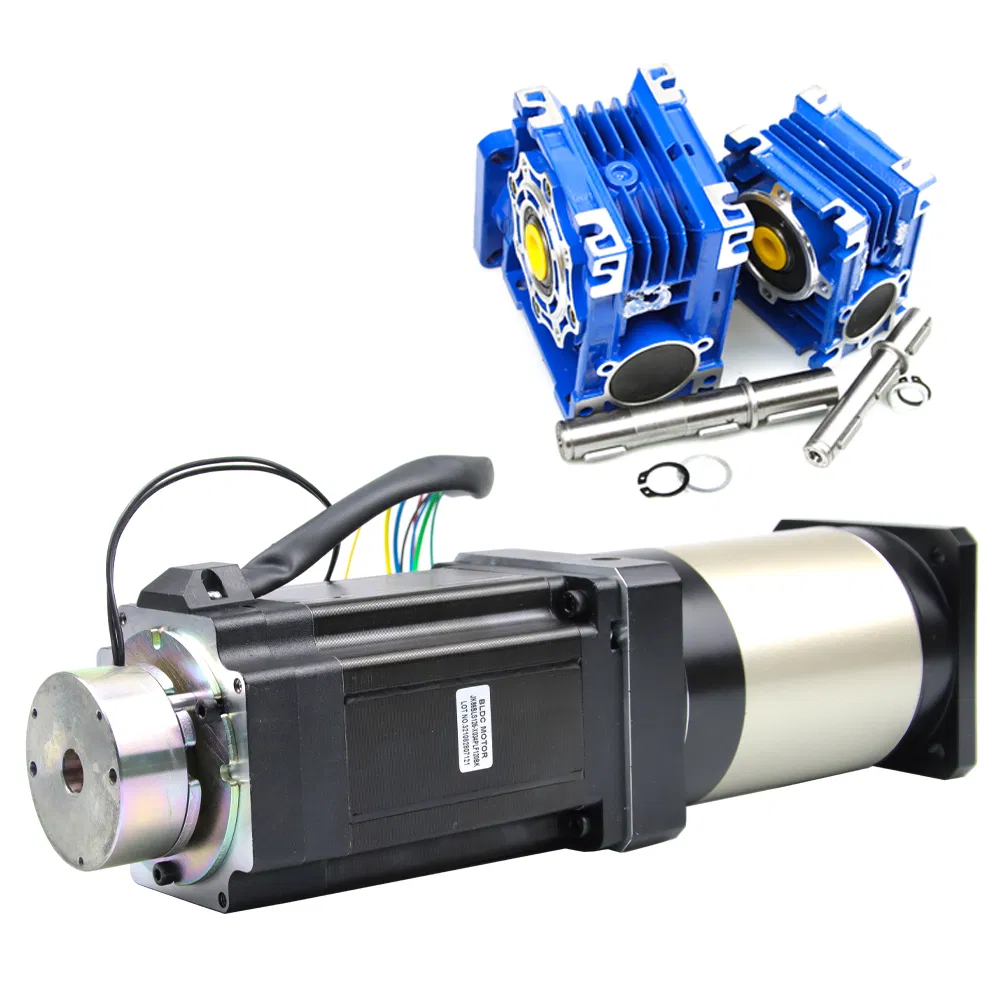

Yes, we specialize in high-precision motor customization, providing custom configurations for shafts, specific voltages, customized gearboxes (planetary, worm, eccentric), encoders, and brake additions based on application demands.
