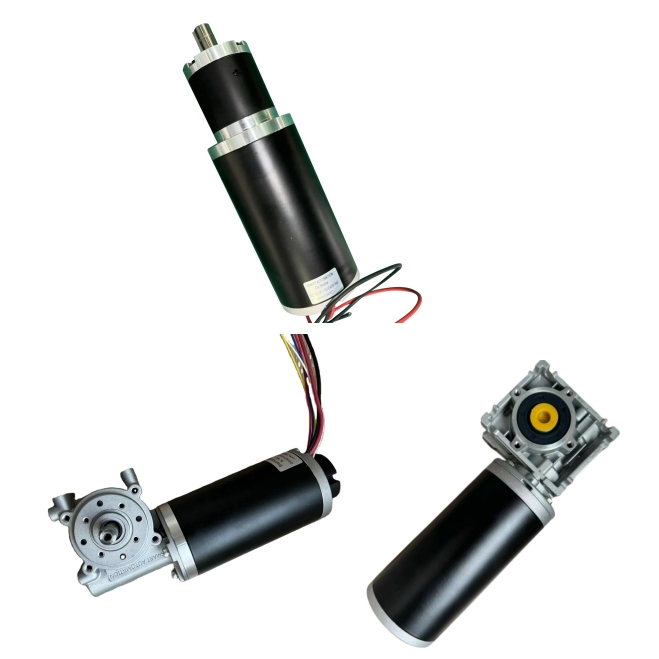

High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
1 / 5
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated
High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated

High Quality Low Noise Brushed or Brushless DC Gear Motor 24V 12V 36V 48V 60V 220V with BLDC Planetary / Worm Geared Reducer Gearbox Encoder Brake Integrated

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Machine, Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Specifications

Model NO. GEAR
Function Control, Driving
Casing Protection Closed Type
Number of Poles 2
Certification ISO9001, CE, RoHS
Power 10W Upto 2000W
Voltage 12V 24V Upto 380VDC
Transport Package Standard Export Package
Specification size 28mm TO 110mm
Trademark OEM ODM
Origin China
HS Code 8501310000
Production Capacity 10000 PCS Per Month

Product Description

Brushed or Brushless DC Gear Motors

We offer Customizable voltage, dimensions, performance parameters, shaft details, mounting options, and more to perfectly suit your requirements.

Integrated accessories including encoders, gearboxes, brakes, and controllers are fully supported.

Please Send an Inquiry, and We Will Provide You with the Best and Most Cost-Effective Solution/Proposal.

Configuration Options

Specification Available Options
Diameter 30mm, 36mm, 38mm, 42mm, 52mm, 57mm, 60mm, 63mm, 70mm, 76mm, 80mm, 86mm, 90mm, 110mm, 130mm
Rated voltage 10V, 12V, 18V, 24V, 36V, 48V, up to 380VDC
Rated torque With gearbox up to 120Nm
Rated speed 1rpm up to 15000rpm
Rated power 10W up to 2000W
Protection class Option IP00, IP40, IP50, IP54, IP56, IP66, IP67
EMI EMI suppression available
Thermal Thermal protection available
Gearbox Option with planetary or worm gearbox assembled
Brake Option with electric brake assembled
Encoder Option with Optical or Magnetic encoders assembled
Controller Option with controller integrated for BLDC Motors

Below Are Only Some of Our Typical Models.

Please contact us for additional models or fully customized motors built to your specifications.

1. Some Typical Brushed DC Gear Motors

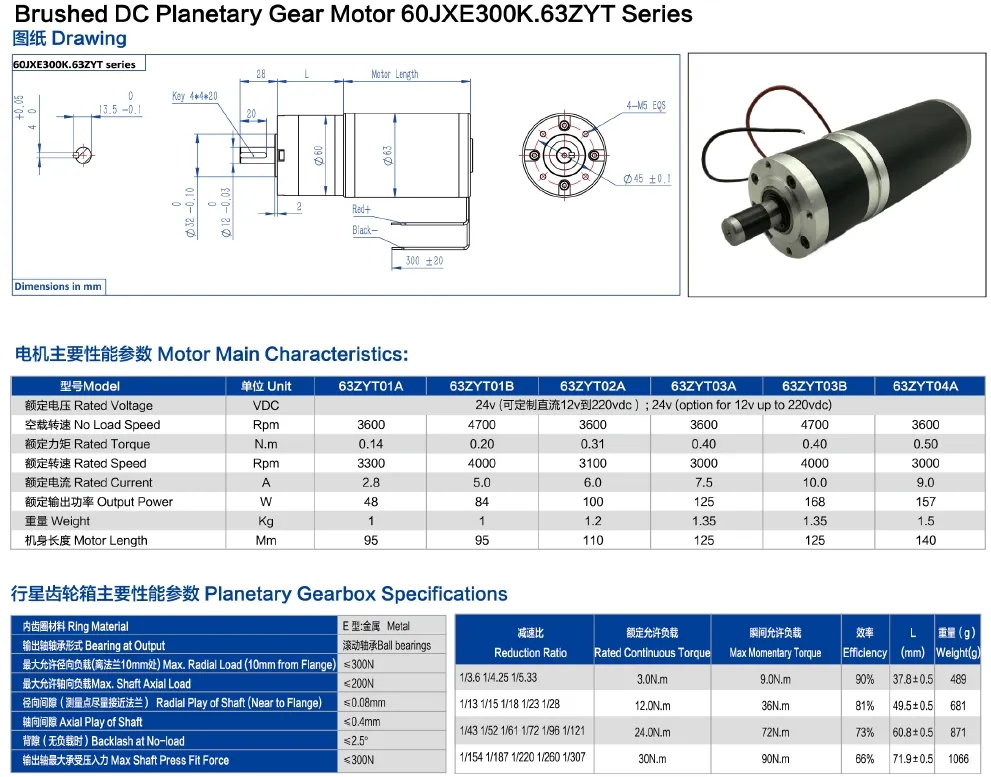

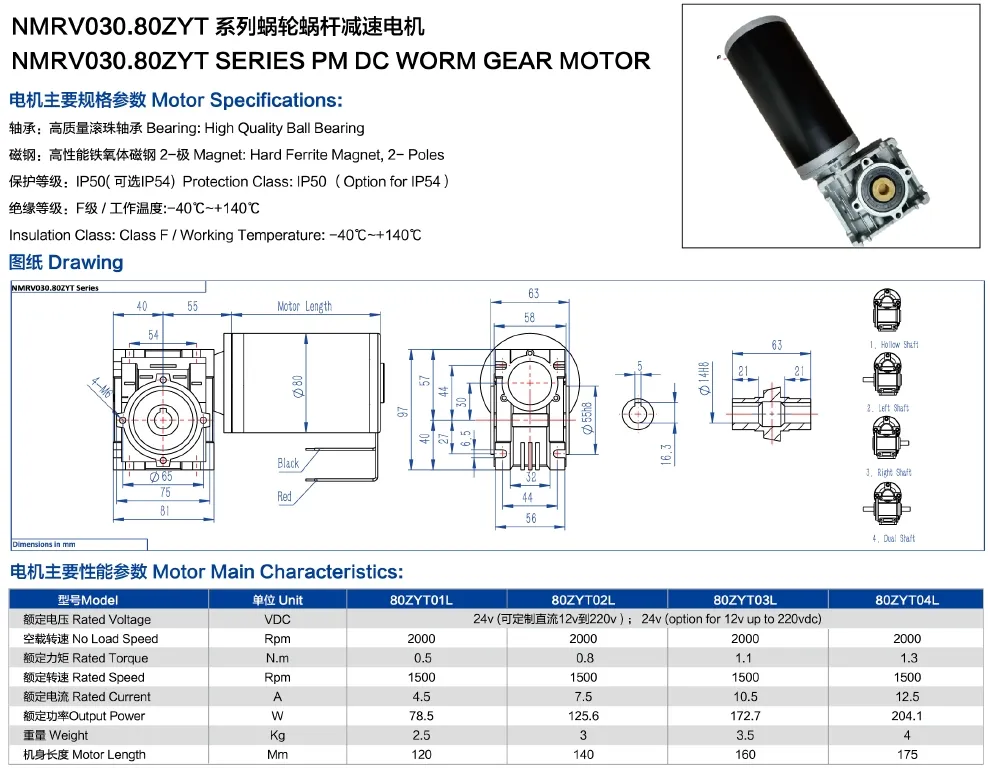

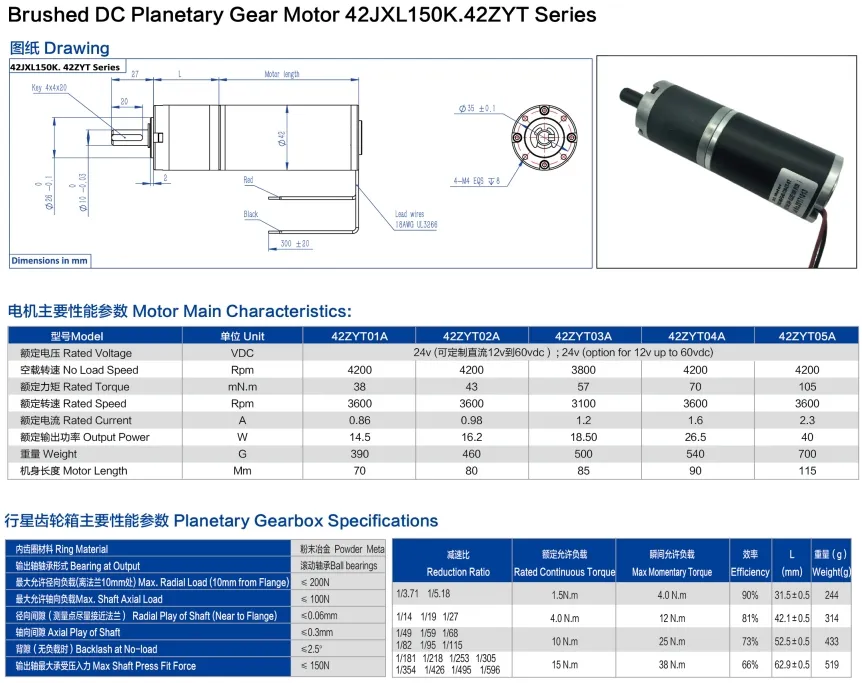

Typical Brushed DC Gear Motor

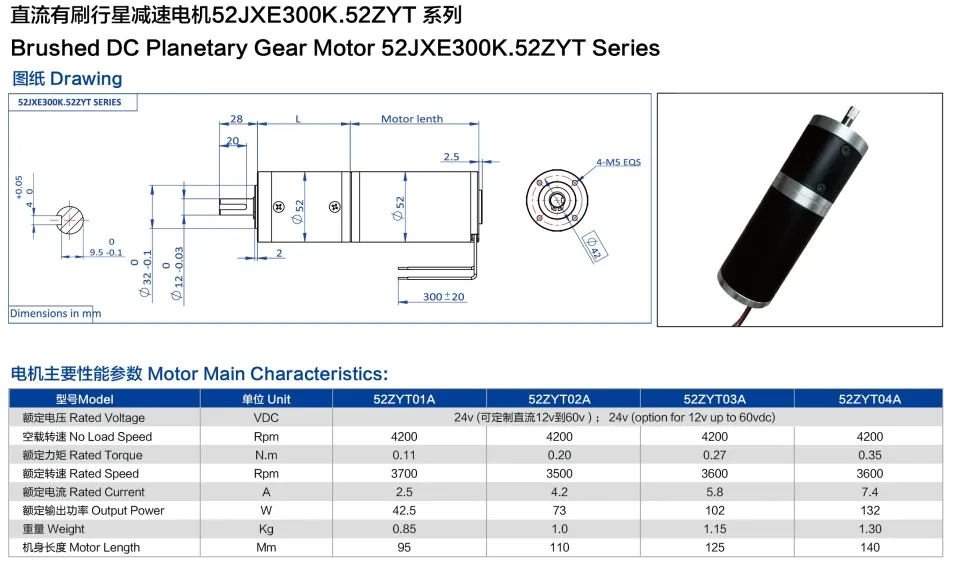

Typical Brushed DC Gear Motor Model Details

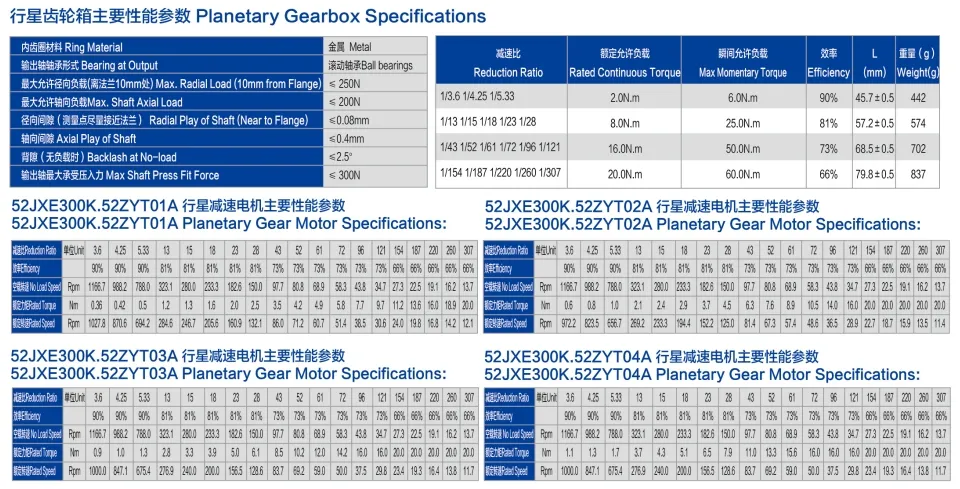

Typical Brushed DC Gear Motor Specifications
Typical Brushed DC Gear Motor

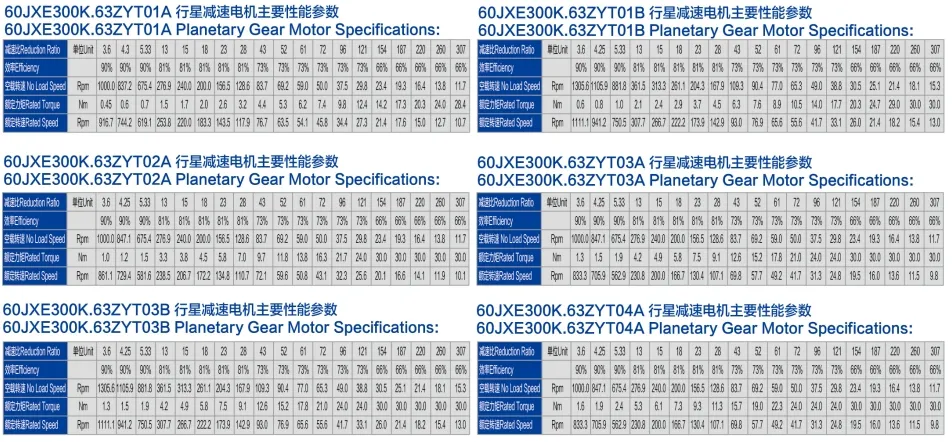

Typical Brushed DC Gear Motor Dimensions

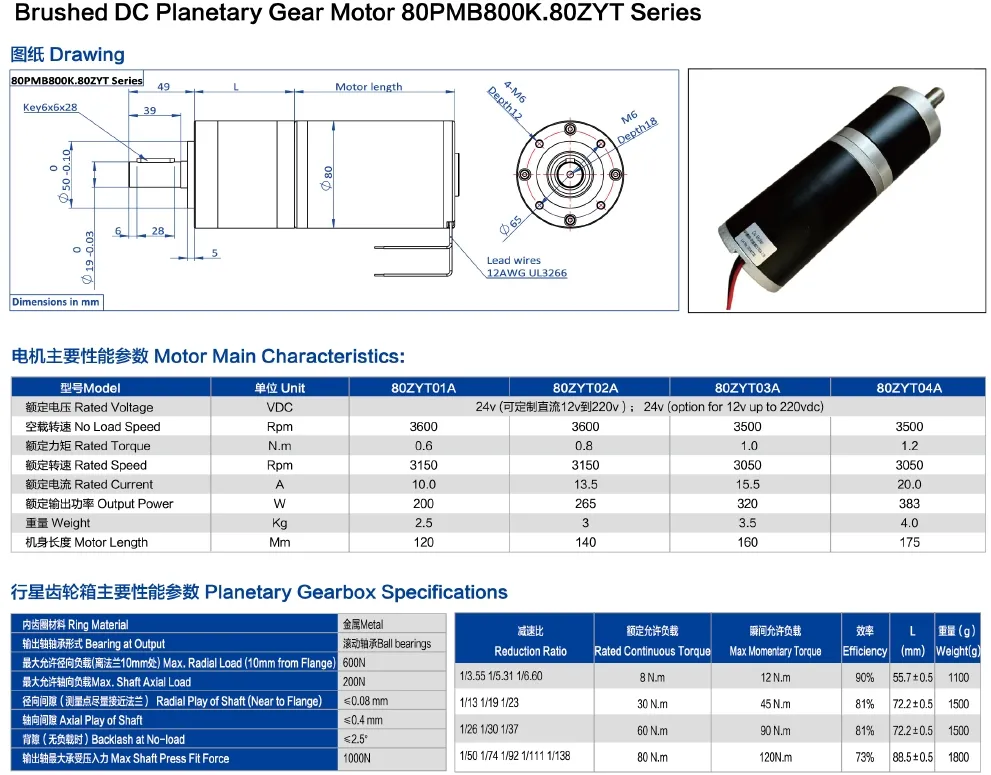

Typical Brushed DC Gear Motor Options

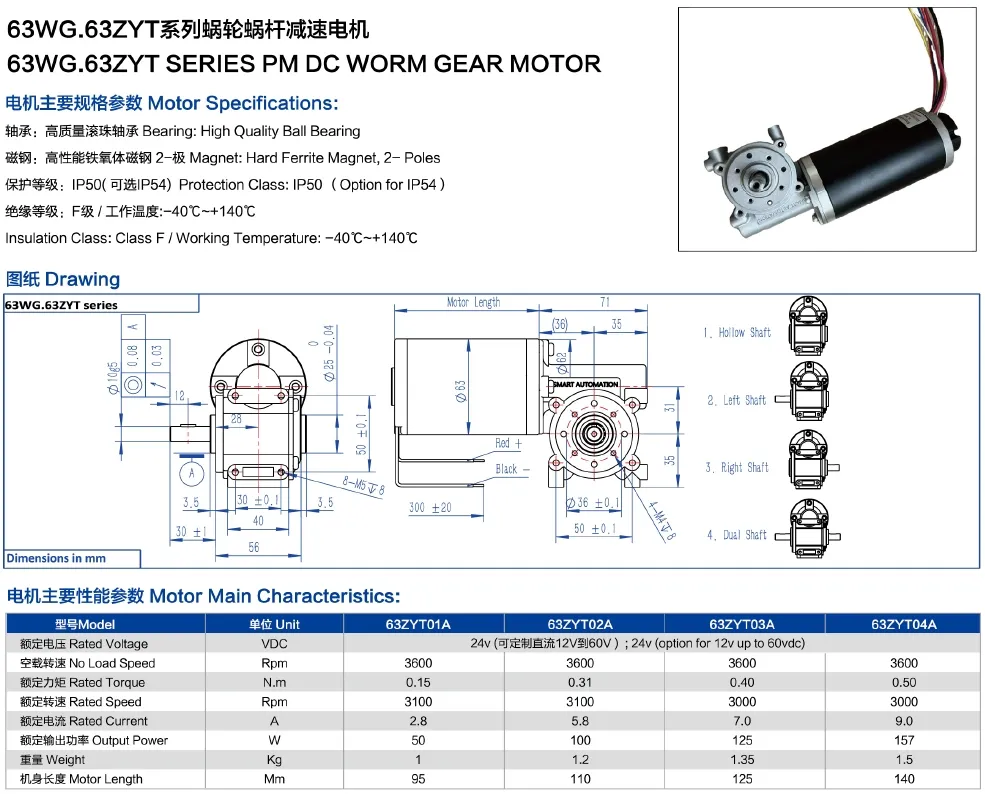

Typical Brushed DC Gear Motor Setup

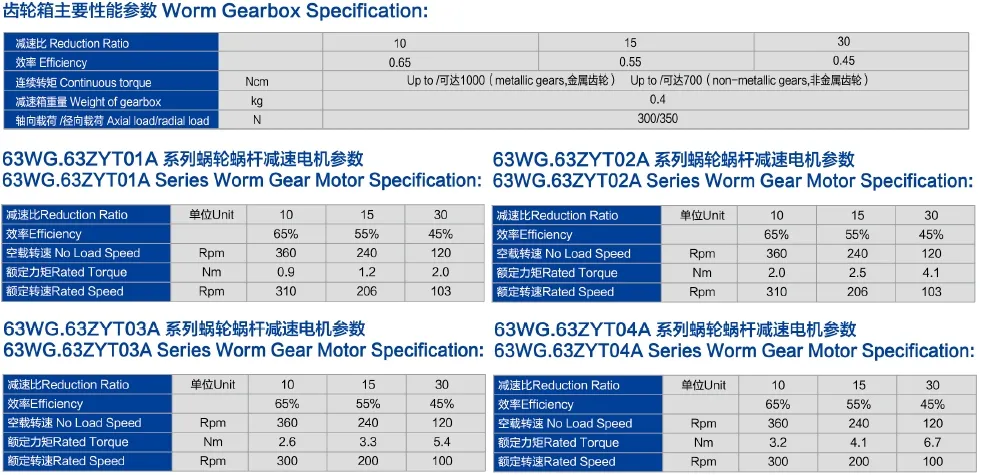

Typical Brushed DC Gear Motor Parameters
Typical Brushed DC Gear Motor

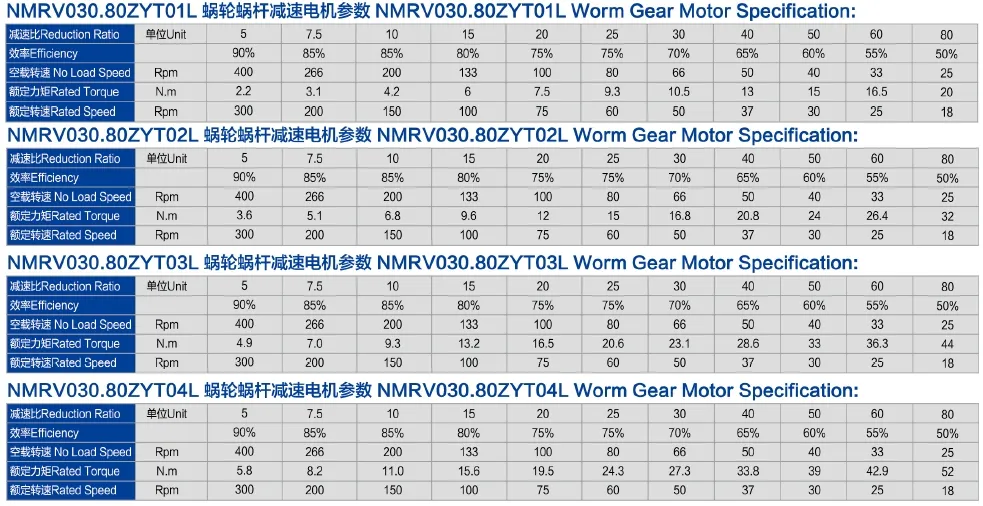

Typical Brushed DC Gear Motor Drawing

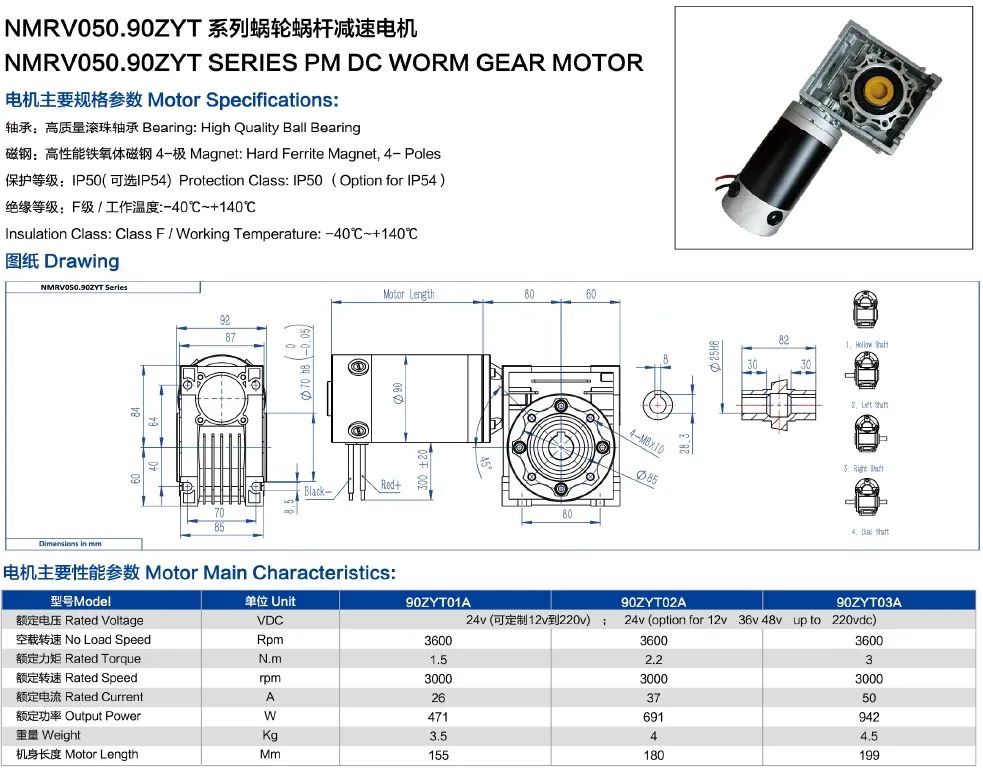

Typical Brushed DC Gear Motor Variations

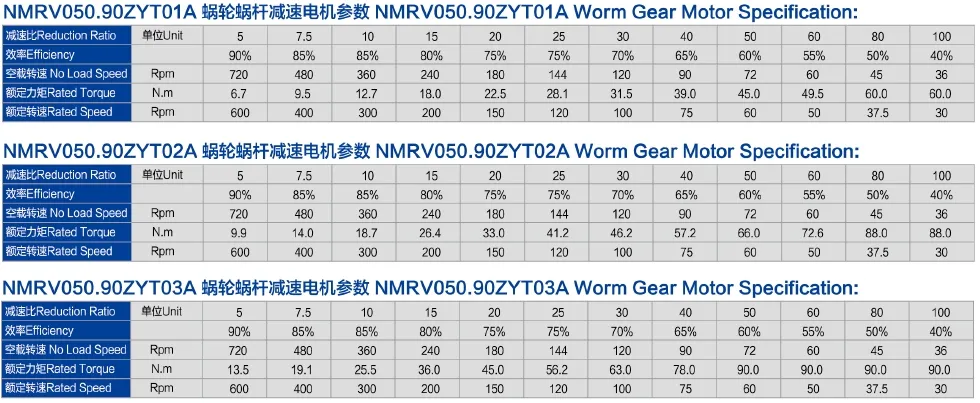

Typical Brushed DC Gear Motor Configurations

2. Some Typical BLDC Gear Motors

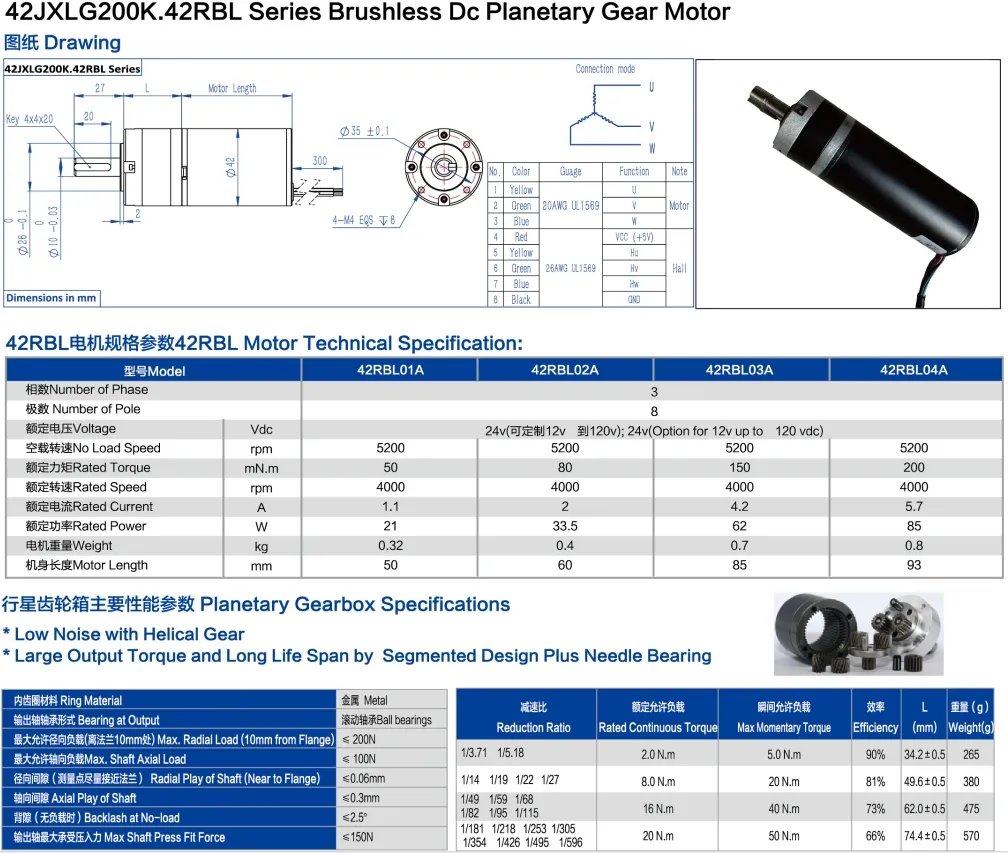

Typical BLDC Gear Motor Option A

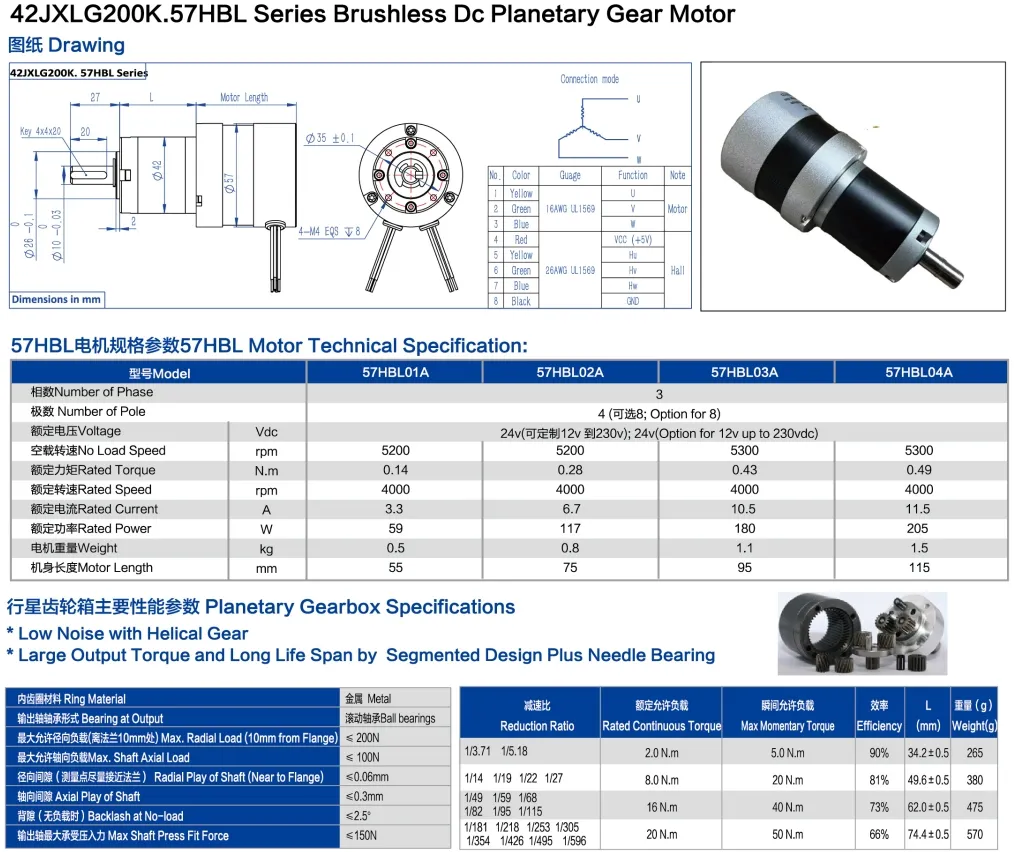

Typical BLDC Gear Motor Option B

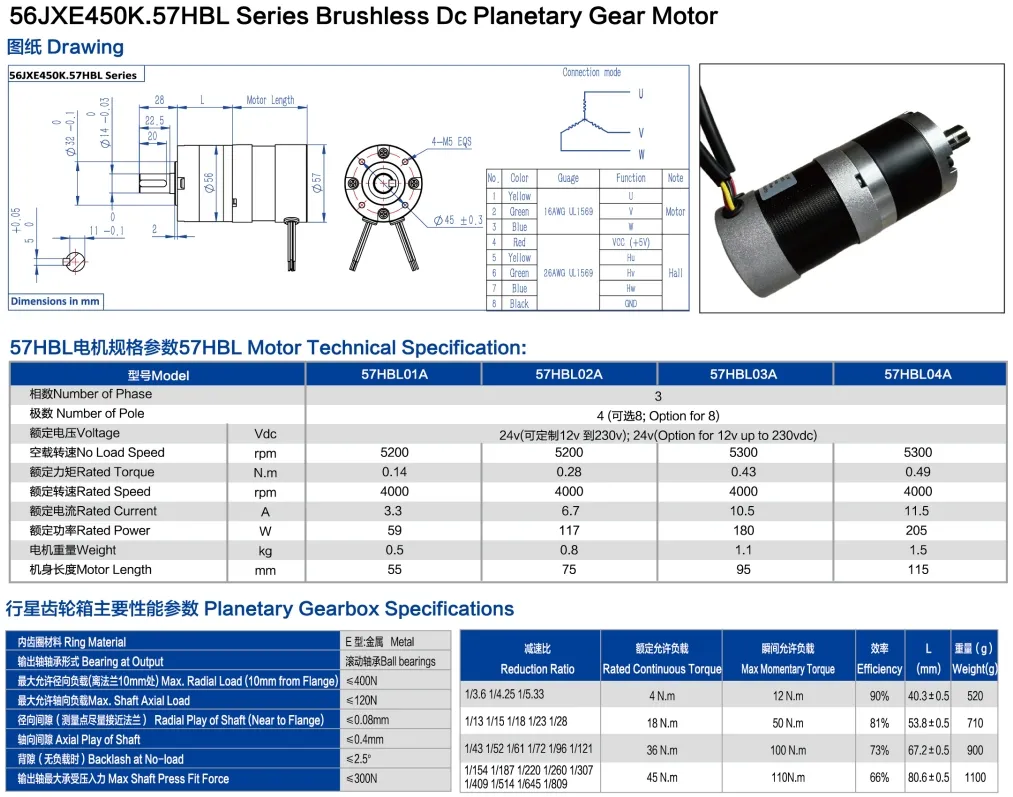

Typical BLDC Gear Motor Option C

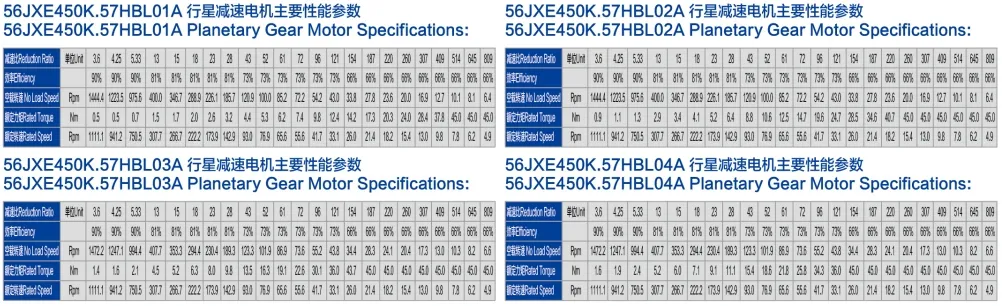

Typical BLDC Gear Motor Dimensions

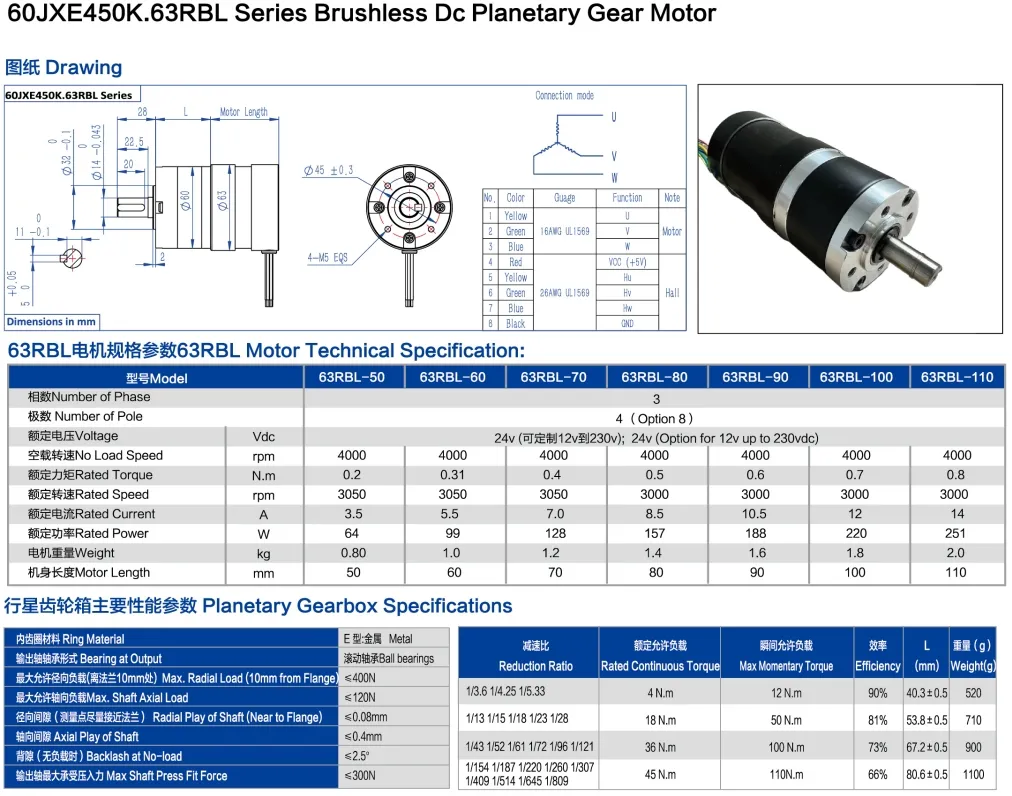

Typical BLDC Gear Motor Configuration

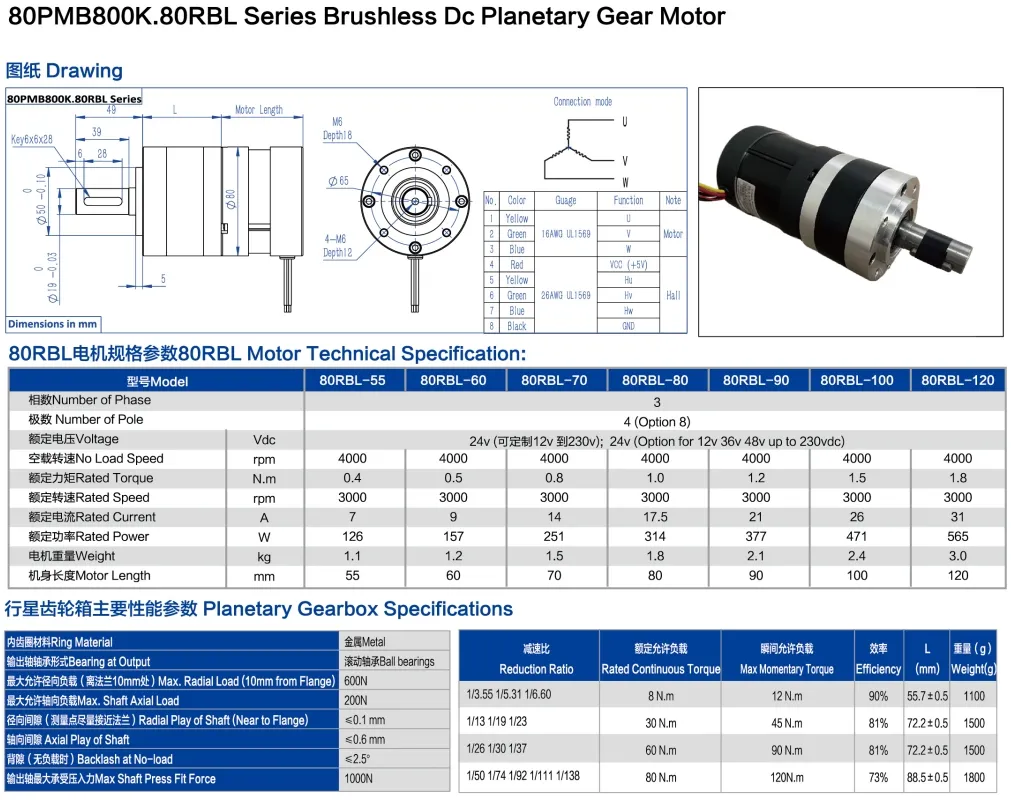

Typical BLDC Gear Motor Model

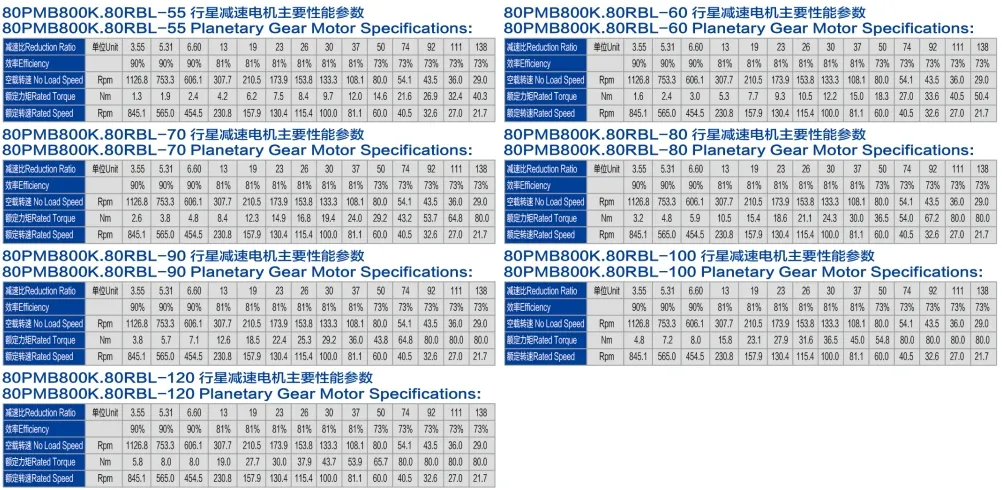

Typical BLDC Gear Motor Data

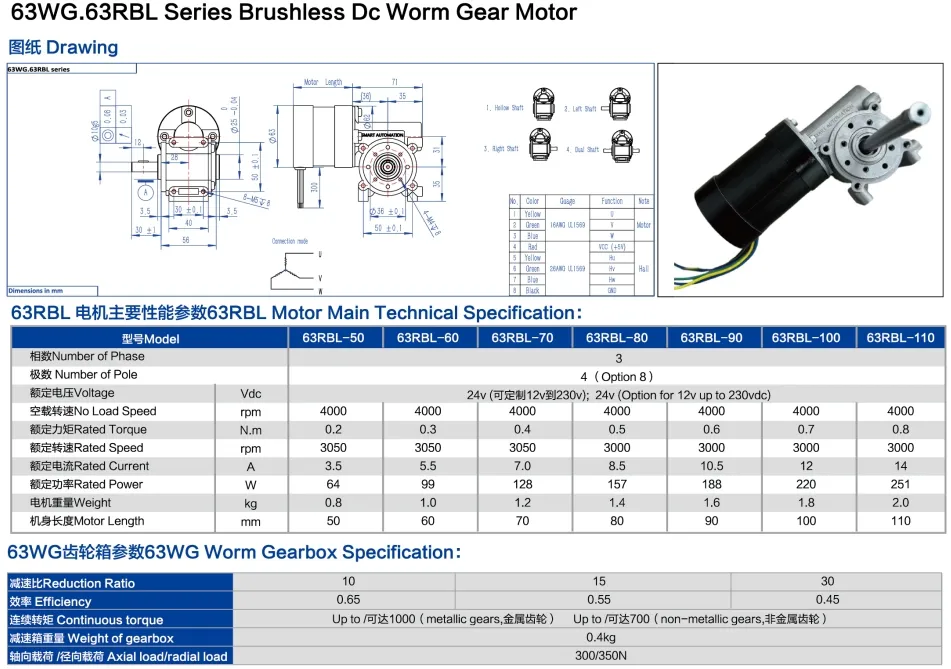

Typical BLDC Gear Motor Structure

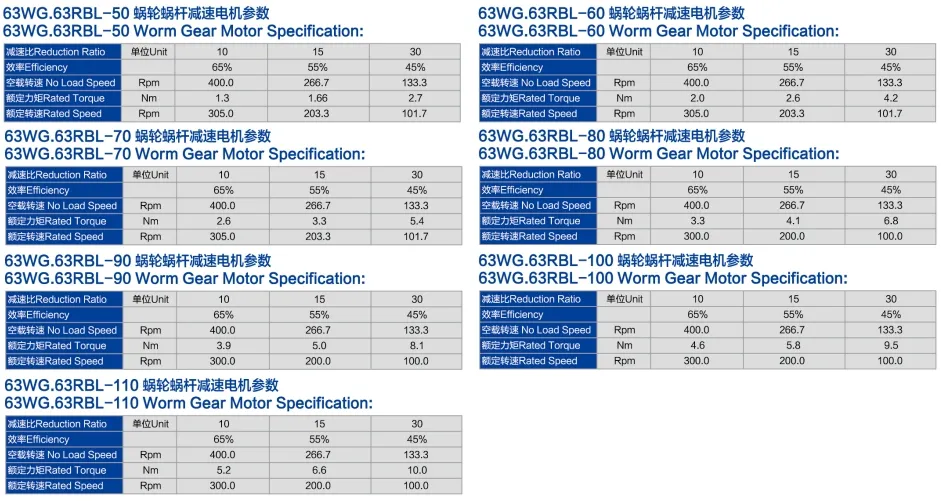

Typical BLDC Gear Motor Diagram

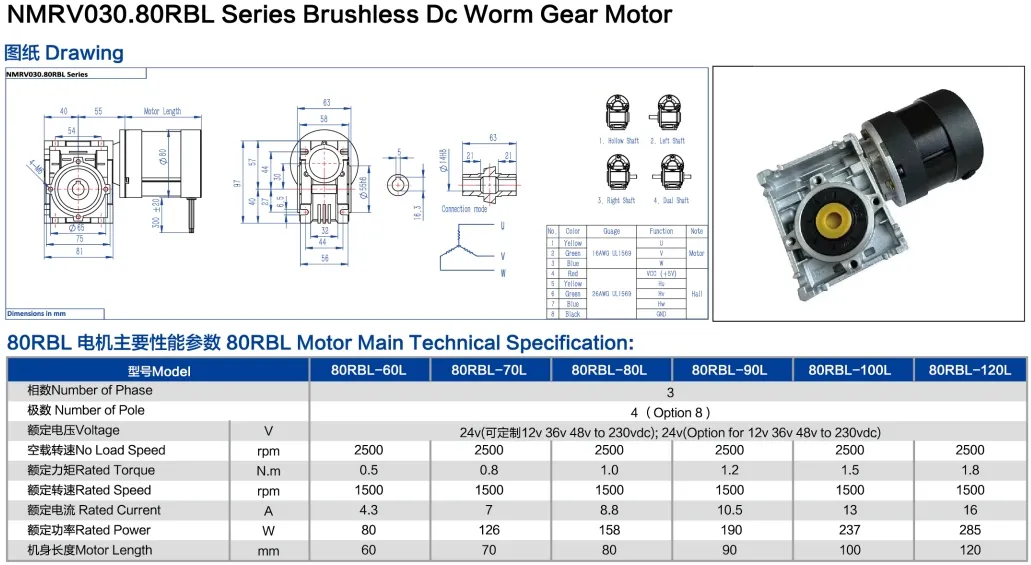

Typical BLDC Gear Motor Overview

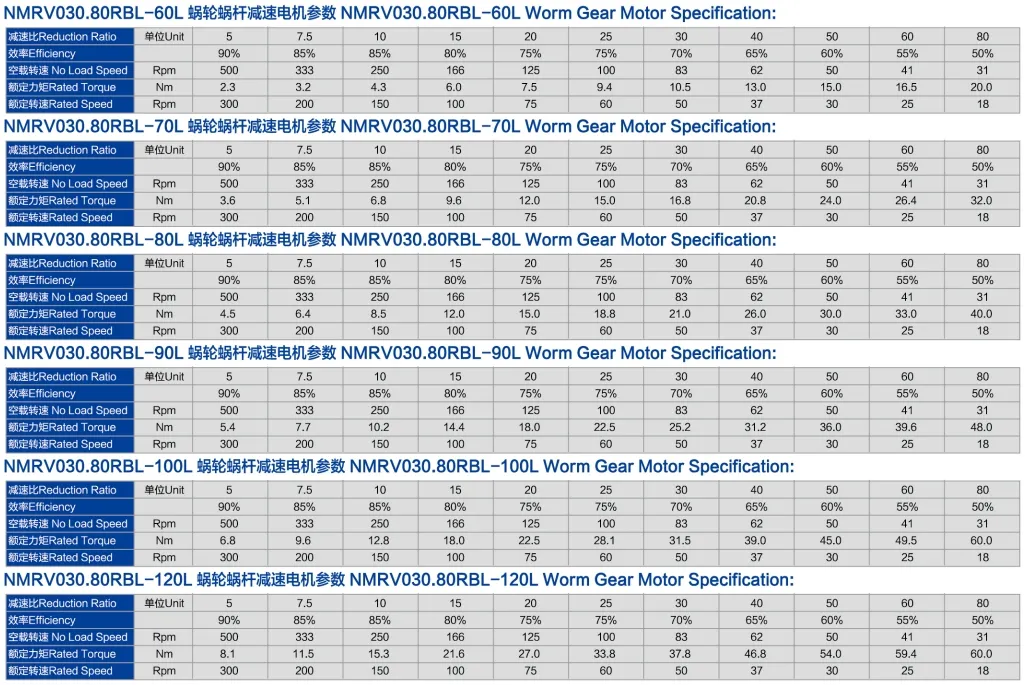

Typical BLDC Gear Motor Outline

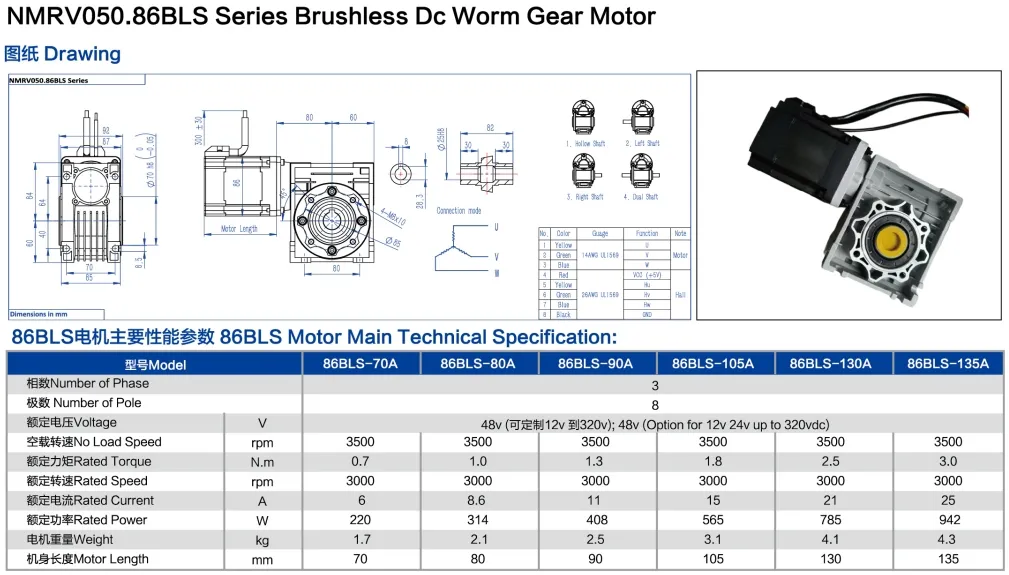

Typical BLDC Gear Motor Setup

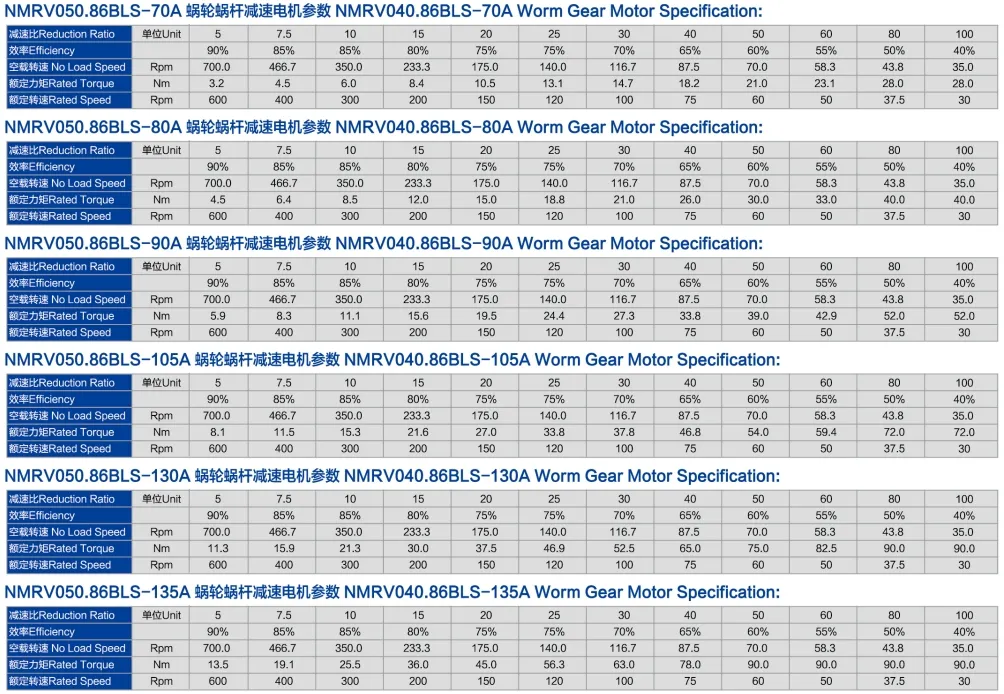

Typical BLDC Gear Motor Curve

Frequently Asked Questions (FAQ)

Q: What is the main difference between brushed and brushless DC gear motors?
A: Brushed DC gear motors are highly cost-effective and simple to operate, suitable for standard driving and control applications. Brushless DC (BLDC) gear motors offer significantly longer operational lifespan, higher efficiency, and lower EMI noise, making them ideal for high-precision, continuous duty applications.
Q: Can you customize the specifications of the motor?
A: Yes, absolutely. We support comprehensive customizations including operating voltage, physical dimensions, performance parameters, output shaft design, and mounting interfaces to match your exact application requirements.
Q: What accessories can be integrated with the DC gear motors?
A: We offer integration options for optical or magnetic encoders, electric brakes, planetary or worm gearboxes, and integrated controllers directly assembled on the BLDC or brushed DC motors.
Q: What range of protection classes (IP ratings) do you offer?
A: We offer various protection levels ranging from IP00 for open environments up to IP67 for dust-tight and water-resistant applications, depending on the operational environment demands.
Q: What is your typical production capacity and lead time?
A: Our standard production capacity is 10,000 PCS per month. Standard and customized lead times vary based on specifications and batch sizes. Please contact us with your inquiry details for a detailed timeline and proposal.
