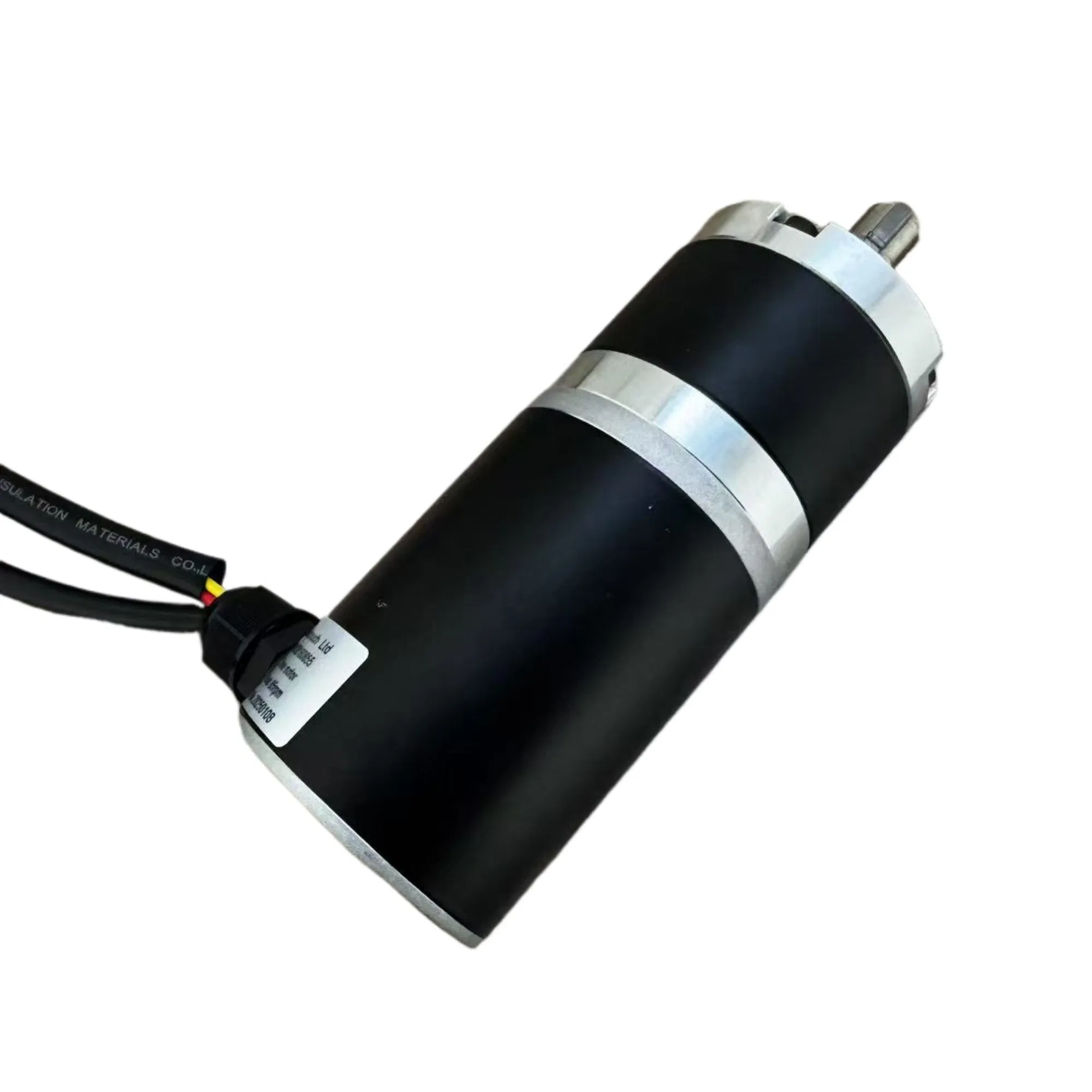

57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
1 / 5
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder
57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder

57mm High Torque Electrical Brushless DC Motor 24V 12V 36V 48V 60V 50W 100W 150W 200W Helical Planetary Gear BLDC Motor with Reducer Controller Brake Encoder

Send Inquiry

Product Description

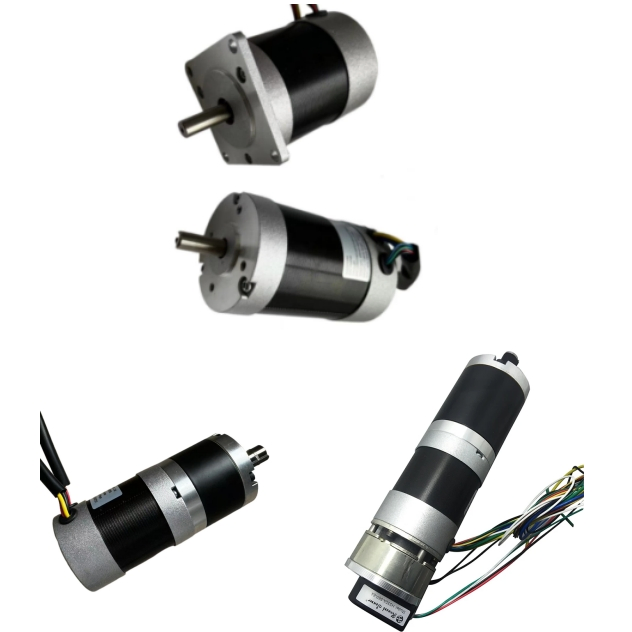

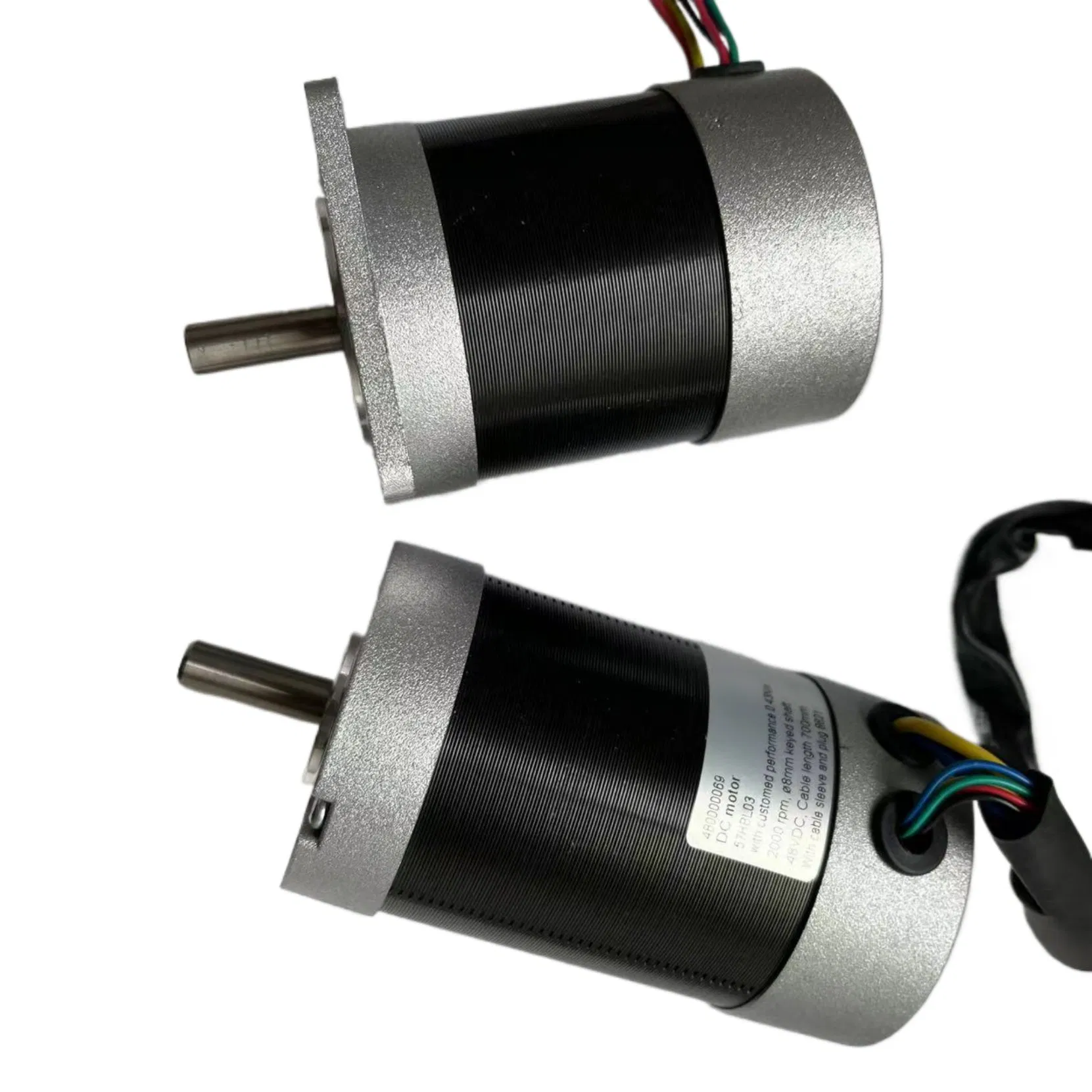

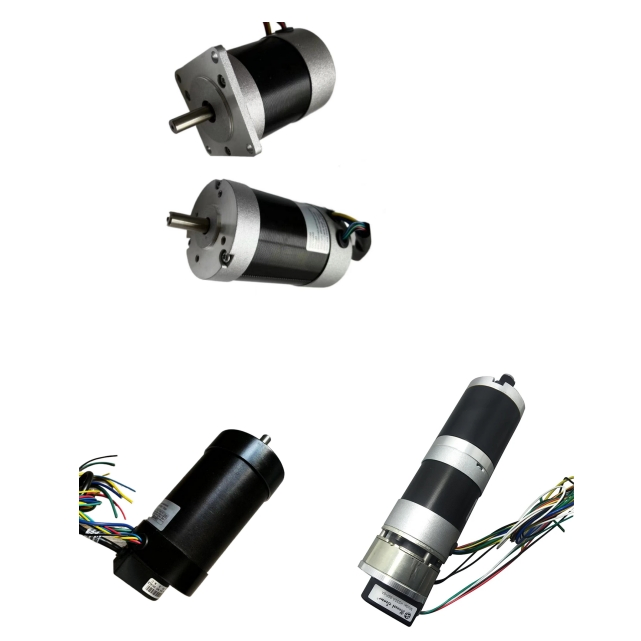

57mm Brushless DC Motors / DC Gear Motor
Customizable Solutions: Voltage, dimension, performance, shaft, and mounting can be tailored to your needs.
Integrated Features: Available with integrated encoder, gearbox, brake, and more.

Please Send Inquiry, and We Will Get You the Best and Most Cost Effective Solution/Proposal.

Technical Options
Diameter57mm
Rated voltage12v 18v 24v 36v 48v up to 380vdc
Rated torqueUp to 0.5Nm (if with gearbox up to 60Nm)
Rated speed1000rpm 1500rpm 2000rpm 3000rpm 4000rpm or customized
Rated power50w 100w 150w 200w 300W
Protection classOption IP00 40 50 54 56 66 67
EMIEMI suppression available
ThermalThermal protection available
GearboxOption with planetary or worm gearbox assembled
BrakeOption with electric brake assembled
EncoderOption with Optical or Magnetic encoders assembled
ControllerOption with controller integrated for BLDC Motors

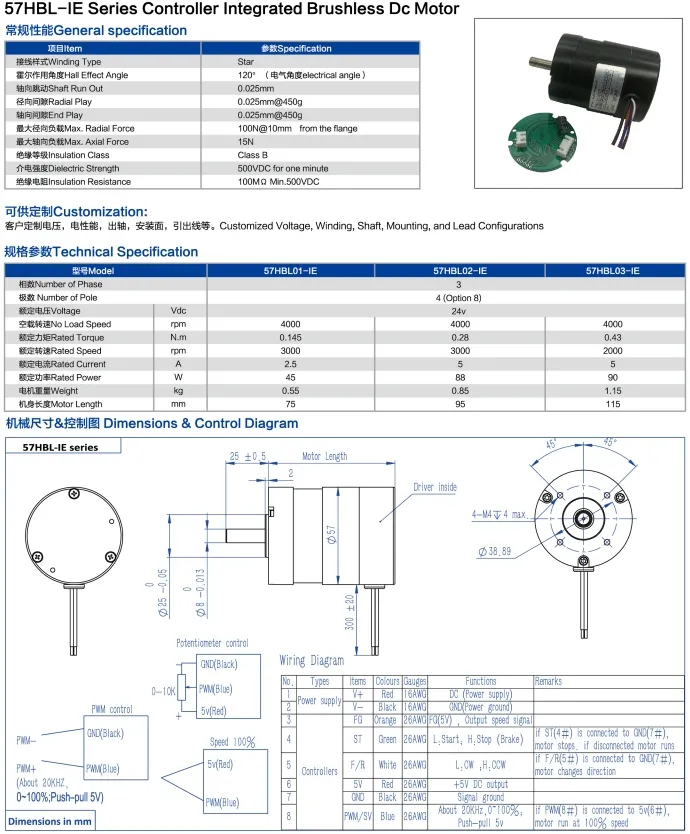

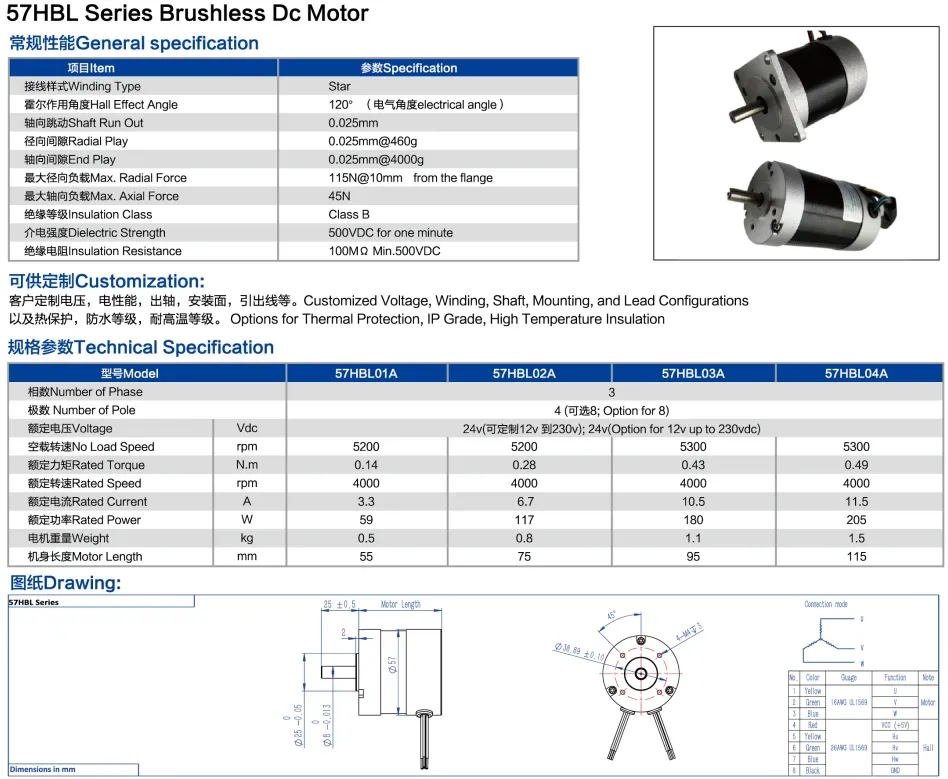

57mm Brushless DC Motor Overview 57mm Brushless DC Motor Specifications

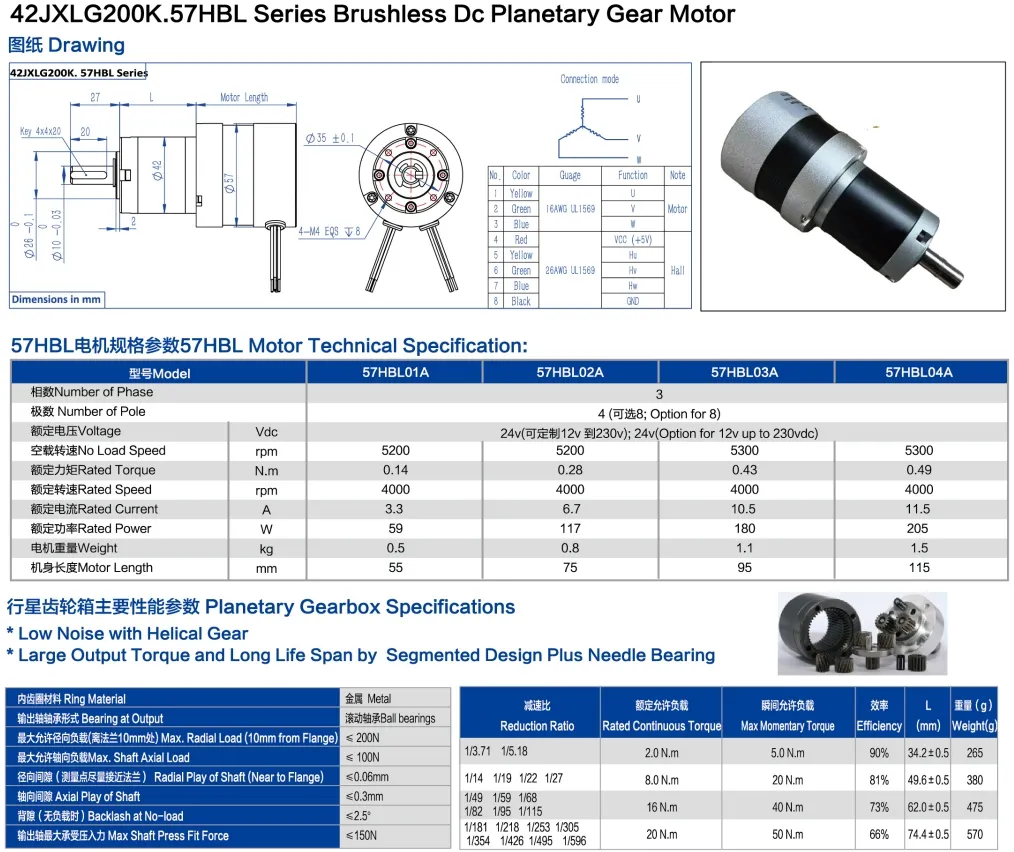

Motor Dimension Diagram

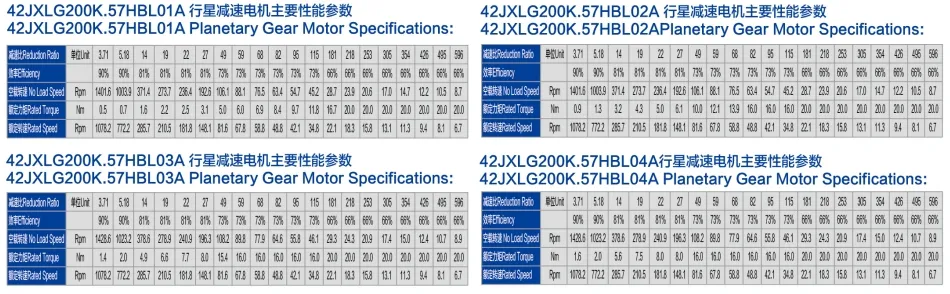

Motor Performance Chart

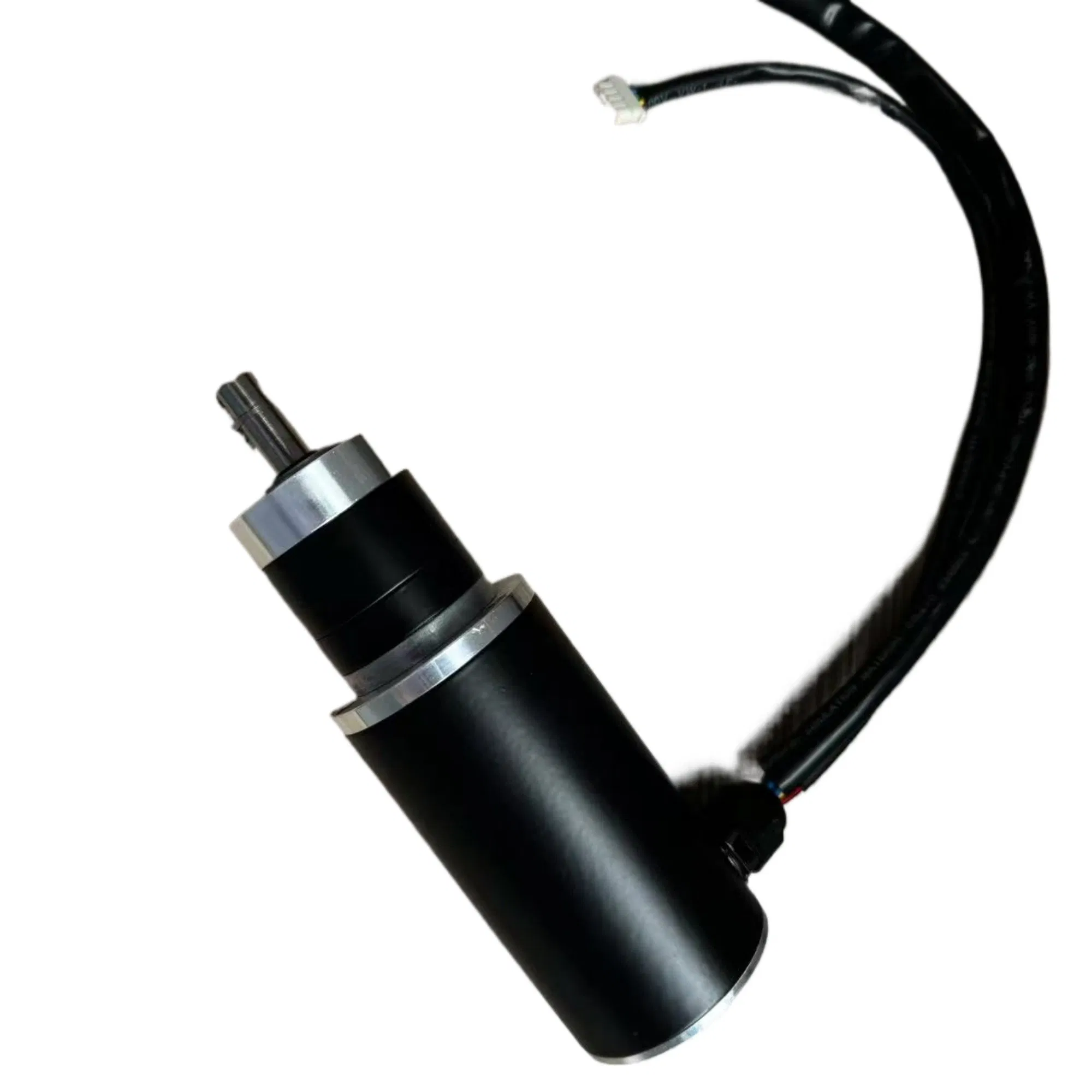

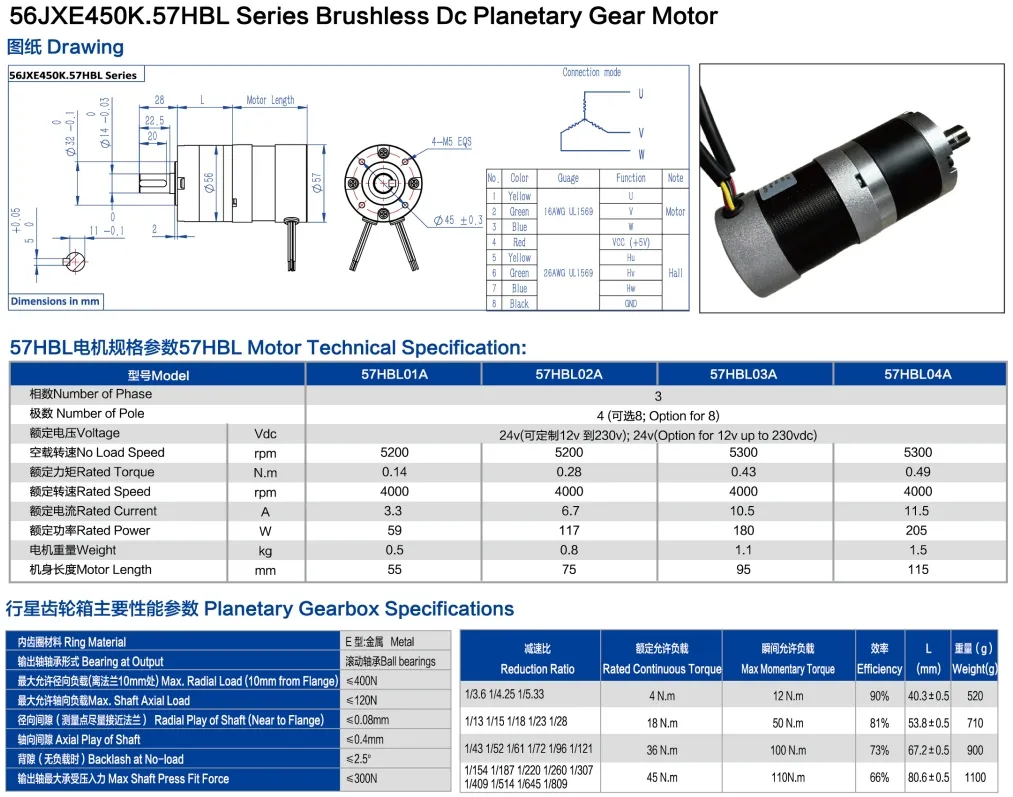

Motor Gearbox Assembly

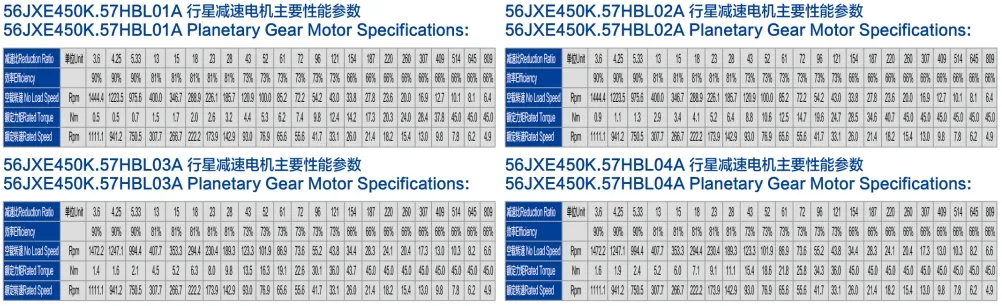

Motor Controller Connection
Frequently Asked Questions (FAQ)
What is the range of rated voltage for these 57mm motors?
We offer a wide range of voltages including 12V, 18V, 24V, 36V, 48V, and can go up to 380VDC based on your application needs.
Can I get this motor with a specific protection rating for outdoor use?
Yes, we provide various protection class options ranging from IP00 up to IP67, ensuring durability in different environments.
Is it possible to increase the torque of the 57mm BLDC motor?
The motor itself provides up to 0.5Nm, but when assembled with our planetary or worm gearboxes, the rated torque can reach up to 60Nm.
What types of encoders can be integrated?
We offer both Optical and Magnetic encoder options that can be pre-assembled to the motor for precise feedback and control.
Are these motors available with thermal and EMI protection?
Yes, both EMI suppression and thermal protection are available as options to ensure stable performance and safety.
Can the shaft and mounting dimensions be customized?
Absolutely. We specialize in customization and can adjust the shaft length, diameter, and mounting configurations to fit your specific design requirements.
